Step1: Product

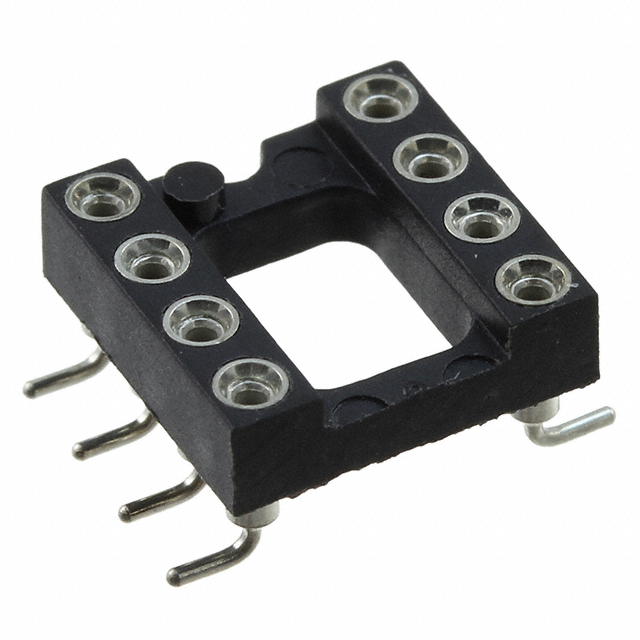

TE Connectivity AMP Connectors 1814640-8
Image shown is a representation only
Manufacturer
Manufacturer No
1814640-8
Packaging
Tube
Description
CONN IC DIP SOCKET 8POS TIN
Detailed Description
8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Surface Mount
DataSheet
Type
DIP, 0.3" (7.62mm) Row Spacing
Features
Open Frame
Packaging
Tube
Part Status
Obsolete
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Pitch - Post
0.100" (2.54mm)
Mounting Type
Surface Mount
Pitch - Mating
0.100" (2.54mm)
Housing Material
Thermoplastic, Polyester
Contact Resistance
10mOhm
Base Product Number
1814640
Contact Finish - Post
Tin
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Tin
Contact Material - Post
Brass
Contact Material - Mating
Beryllium Copper
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Finish Thickness - Mating
200.0µin (5.08µm)
Number of Positions or Pins (Grid)
8 (2 x 4)
| Attribute | Value |
|---|---|
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Features | Open Frame |
| Packaging | Tube |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Thermoplastic, Polyester |
| Contact Resistance | 10mOhm |
| Base Product Number | 1814640 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Brass |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Number of Positions or Pins (Grid) | 8 (2 x 4) |
