Step1: Product

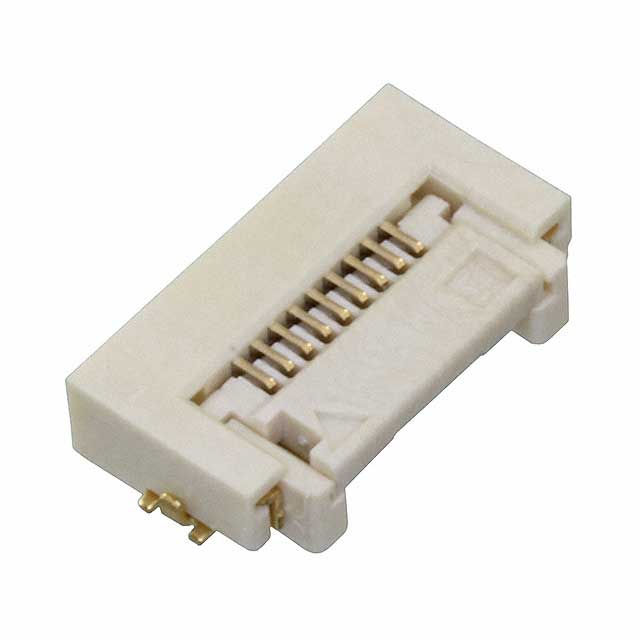

TE Connectivity AMP Connectors 1775333-9
Image shown is a representation only
Manufacturer
Manufacturer No
1775333-9
Packaging
Tape & Reel (TR)
Description
CONN FPC BOTTOM 9POS 0.5MM R/A
Detailed Description
9 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Housing Color
Natural
Mounting Type
Surface Mount, Right Angle
Actuator Color
Natural
Cable End Type
Straight
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
250V
Locking Feature
Flip Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP)
Actuator Material
Liquid Crystal Polymer (LCP)
FFC, FCB Thickness
0.30mm
Height Above Board
0.081" (2.05mm)
Base Product Number
1775333
Number of Positions
9
Current Rating (Amps)
0.5A
Operating Temperature
-20°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
50.0µin (1.27µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Color | Natural |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Natural |
| Cable End Type | Straight |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 250V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.081" (2.05mm) |
| Base Product Number | 1775333 |
| Number of Positions | 9 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -20°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Material Flammability Rating | UL94 V-0 |
