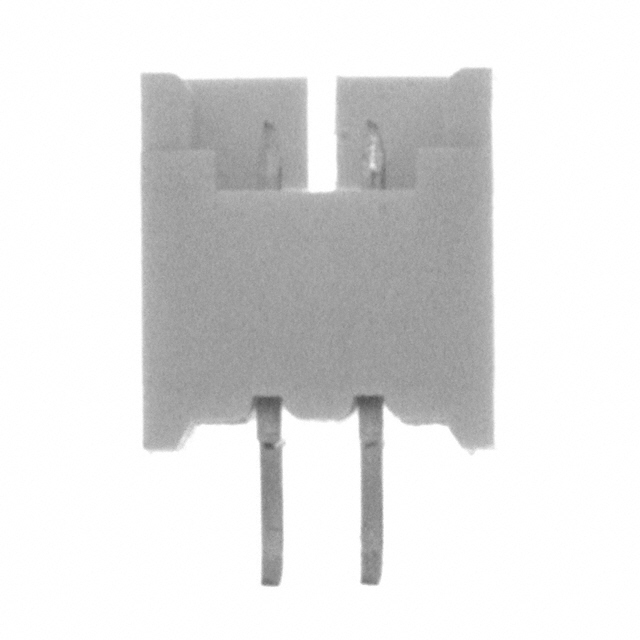

TE Connectivity AMP Connectors 1734598-2
Image shown is a representation only
Manufacturer
Manufacturer No
1734598-2
Quantity
5
Availability
In Stock
Packaging
Tube
Description
CONN HEADER VERT 2POS 1.25MM
Detailed Description
Connector Header Through Hole 2 position 0.049" (1.25mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
High Performance Interconnect (HPI)
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Obsolete
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Number of Rows
1
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
100VAC
Contact Material
Phosphor Bronze
Insulation Color
Natural
Insulation Height
0.185" (4.70mm)
Base Product Number
1734598
Insulation Material
Polyamide (PA9T), Nylon 9T, Glass Filled
Number of Positions
2
Contact Finish - Post
Tin
Contact Length - Post
0.067" (1.70mm)
Current Rating (Amps)
1A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
120.0µin (3.05µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | High Performance Interconnect (HPI) |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Obsolete |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Number of Rows | 1 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 100VAC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Natural |
| Insulation Height | 0.185" (4.70mm) |
| Base Product Number | 1734598 |
| Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Number of Positions | 2 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.067" (1.70mm) |
| Current Rating (Amps) | 1A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
