Step1: Product

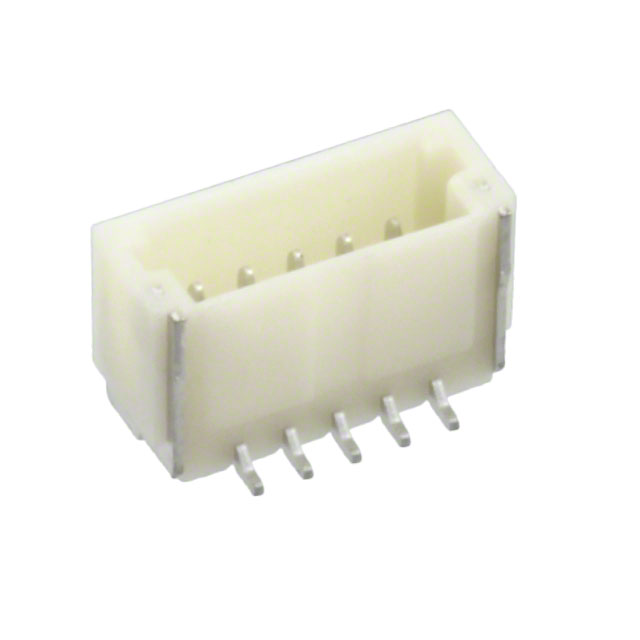

TE Connectivity AMP Connectors 1734595-5
Image shown is a representation only
Manufacturer
Manufacturer No
1734595-5
Quantity
1
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD 5POS 1MM
Detailed Description
Connector Header Surface Mount 5 position 0.039" (1.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
High Performance Interconnect (HPI)
Features
Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Obsolete
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Number of Rows
1
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
50V
Contact Material
Phosphor Bronze
Insulation Color
Ivory
Insulation Height
0.169" (4.30mm)
Base Product Number
1734595
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
5
Contact Finish - Post
Tin
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
120.0µin (3.05µm)
Contact Finish Thickness - Mating
120.0µin (3.05µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | High Performance Interconnect (HPI) |
| Features | Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Obsolete |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Number of Rows | 1 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 50V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Ivory |
| Insulation Height | 0.169" (4.30mm) |
| Base Product Number | 1734595 |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 5 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 120.0µin (3.05µm) |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
