Step1: Product

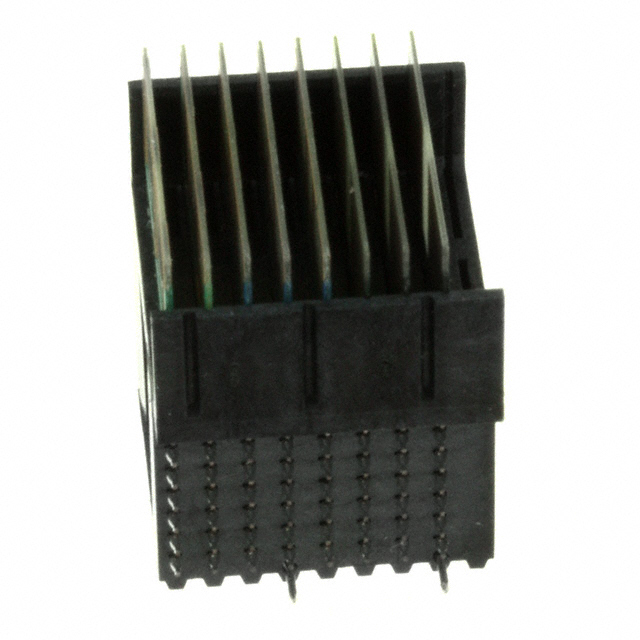

TE Connectivity AMP Connectors 1410189-3
Image shown is a representation only
Manufacturer
Manufacturer No
1410189-3
Quantity
10
Availability
In Stock
Packaging
Tube
Description
CONN PLUG VITA46 56POS EDGE MNT
Detailed Description
56 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Half, Left End
DataSheet
Color
Black
Pitch
0.071" (1.80mm)
Series
MULTIGIG RT2
Features
Board Guide
Packaging
Tube
Part Status
Active
Termination
Press-Fit
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Plug, Male Blades
Contact Finish
Gold
Number of Rows
7
Voltage Rating
50V
Connector Style
VITA 46, Half, Left End
Connector Usage
Daughtercard
Number of Columns
8
Base Product Number
1410189
Number of Positions
56
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Contact Layout, Typical
4 Signal Pairs, 16 Single Signal, 6 Power Groups, 11 Ground, 3 Open
Contact Finish Thickness
50.0µin (1.27µm)
Number of Positions Loaded
53
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.071" (1.80mm) |
| Series | MULTIGIG RT2 |
| Features | Board Guide |
| Packaging | Tube |
| Part Status | Active |
| Termination | Press-Fit |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Plug, Male Blades |
| Contact Finish | Gold |
| Number of Rows | 7 |
| Voltage Rating | 50V |
| Connector Style | VITA 46, Half, Left End |
| Connector Usage | Daughtercard |
| Number of Columns | 8 |
| Base Product Number | 1410189 |
| Number of Positions | 56 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Layout, Typical | 4 Signal Pairs, 16 Single Signal, 6 Power Groups, 11 Ground, 3 Open |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Number of Positions Loaded | 53 |
| Material Flammability Rating | UL94 V-0 |
