Step1: Product

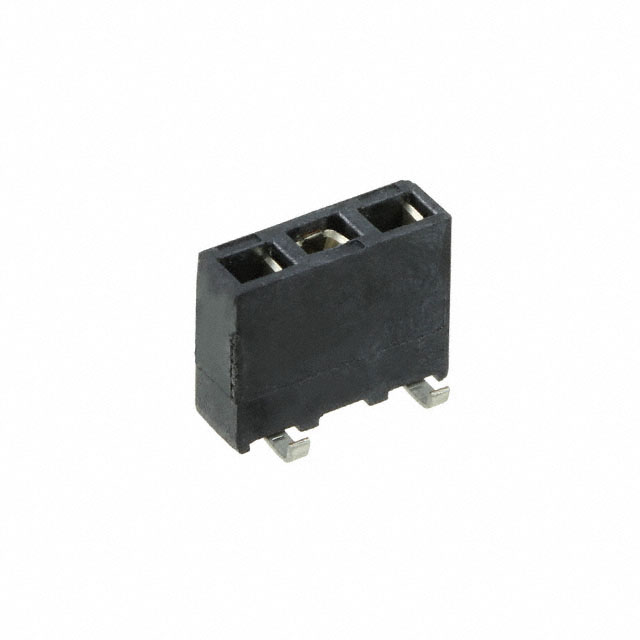

TE Connectivity AMP Connectors 1241152-3
Image shown is a representation only
Manufacturer
Manufacturer No
1241152-3
Quantity
10
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT 3POS 0.1 GOLD SMD
Detailed Description
3 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board
Series
AMPMODU HV-100
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle, Bottom or Top Entry
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.244" (6.20mm)
Base Product Number
1241152
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
3
Contact Finish - Post
Tin
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
31.5µin (0.80µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board |
| Series | AMPMODU HV-100 |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Bottom or Top Entry |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.244" (6.20mm) |
| Base Product Number | 1241152 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
