Step1: Product
TE Connectivity AMP Connectors 1241150-3

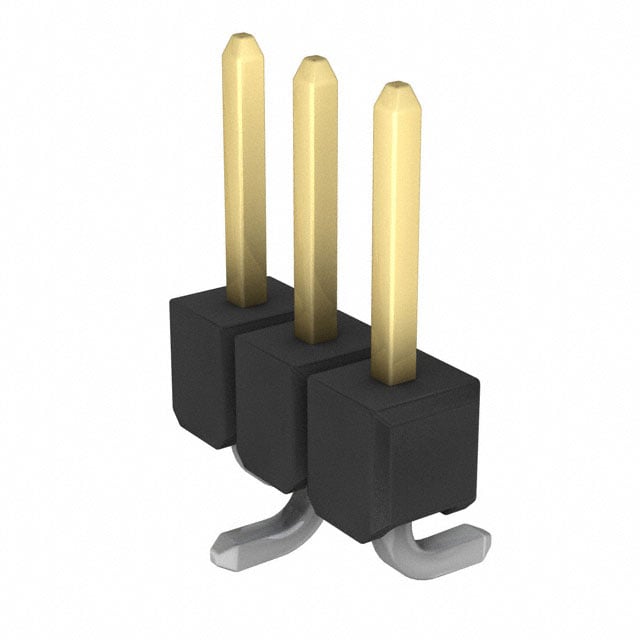

Image shown is a representation only
Manufacturer
Manufacturer No
1241150-3
Quantity
7
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD 3POS 2.54MM
Detailed Description
Connector Header Surface Mount 3 position 0.100" (2.54mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
AMPMODU Mod II
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Unshrouded
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header, Breakaway
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.110" (2.79mm)
Base Product Number
1241150
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT)
Number of Positions
3
Contact Finish - Post
Tin
Contact Finish - Mating
Gold or Gold-Palladium
Contact Length - Mating
0.228" (5.80mm)
Number of Positions Loaded
All
Contact Finish Thickness - Post
118.1µin (3.00µm)
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | AMPMODU Mod II |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header, Breakaway |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.110" (2.79mm) |
| Base Product Number | 1241150 |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Length - Mating | 0.228" (5.80mm) |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | Flash |
