Step1: Product

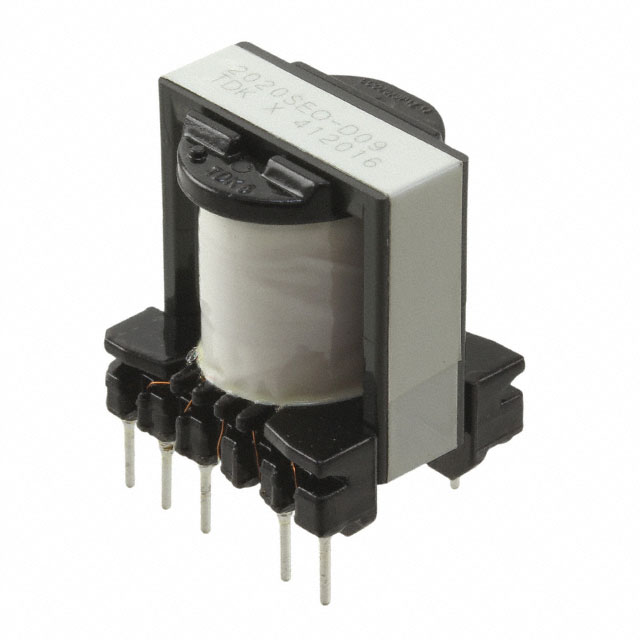

TDK ECO2020SEO-D09V015
Image shown is a representation only
Manufacturer
Manufacturer No
ECO2020SEO-D09V015
Packaging
Bulk
Description
XFMR FLYBCK AC/DC CONV 12.6MH TH
Detailed Description
Flyback Converters For For AC/DC Converters SMPS Transformer 2000Vrms Isolation Through Hole
Datasheet
Type
For AC/DC Converters
Series
ECO
Footprint
0.886" L x 0.768" W (22.50mm x 19.50mm)
Packaging
Bulk
Applications
Flyback Converters
Manufacturer
TDK
Mounting Type
Through Hole
Size / Dimension
0.886" L x 0.768" W (22.50mm x 19.50mm)
Voltage - Primary
154 ~ 312V
Voltage - Auxiliary
12V @ 500mA
Voltage - Isolation
2000Vrms
Height - Seated (Max)
1.063" (27.00mm)
Operating Temperature
-30°C ~ 120°C
Inductance @ Frequency
12.6mH @ 10kHz
| Attribute | Value |
|---|---|
| Type | For AC/DC Converters |
| Series | ECO |
| Footprint | 0.886" L x 0.768" W (22.50mm x 19.50mm) |
| Packaging | Bulk |
| Applications | Flyback Converters |
| Manufacturer | TDK |
| Mounting Type | Through Hole |
| Size / Dimension | 0.886" L x 0.768" W (22.50mm x 19.50mm) |
| Voltage - Primary | 154 ~ 312V |
| Voltage - Auxiliary | 12V @ 500mA |
| Voltage - Isolation | 2000Vrms |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Operating Temperature | -30°C ~ 120°C |
| Inductance @ Frequency | 12.6mH @ 10kHz |
