Step1: Product

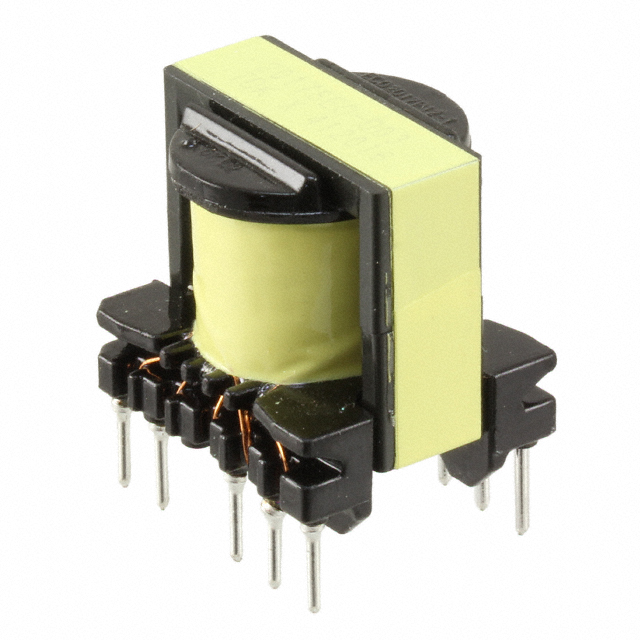

TDK ECO2017SEO-D03V014
Image shown is a representation only
Manufacturer
Manufacturer No
ECO2017SEO-D03V014
Packaging
Bulk
Description
XFMR FLYBACK AC/DC CONV 555UH TH
Detailed Description
Flyback Converters For For AC/DC Converters SMPS Transformer 3000Vrms Isolation Through Hole
Datasheet
Type
For AC/DC Converters
Series
ECO
Footprint
0.768" L x 0.886" W (19.50mm x 22.50mm)
Packaging
Bulk
Applications
Flyback Converters
Manufacturer
TDK
Mounting Type
Through Hole
Size / Dimension
0.768" L x 0.886" W (19.50mm x 22.50mm)
Voltage - Primary
85 ~ 264V
Voltage - Auxiliary
12V @ 1A
Voltage - Isolation
3000Vrms
Height - Seated (Max)
0.945" (24.00mm)
Operating Temperature
-30°C ~ 120°C
Inductance @ Frequency
555µH @ 100kHz
| Attribute | Value |
|---|---|
| Type | For AC/DC Converters |
| Series | ECO |
| Footprint | 0.768" L x 0.886" W (19.50mm x 22.50mm) |
| Packaging | Bulk |
| Applications | Flyback Converters |
| Manufacturer | TDK |
| Mounting Type | Through Hole |
| Size / Dimension | 0.768" L x 0.886" W (19.50mm x 22.50mm) |
| Voltage - Primary | 85 ~ 264V |
| Voltage - Auxiliary | 12V @ 1A |
| Voltage - Isolation | 3000Vrms |
| Height - Seated (Max) | 0.945" (24.00mm) |
| Operating Temperature | -30°C ~ 120°C |
| Inductance @ Frequency | 555µH @ 100kHz |
