Step1: Product

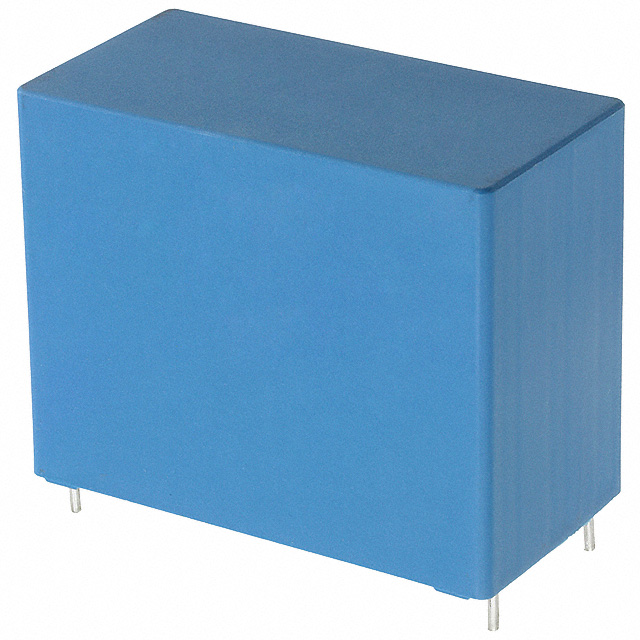

TDK B32778G0306K000
Image shown is a representation only
Manufacturer
Manufacturer No
B32778G0306K000
Quantity
306
Availability
In Stock
Package
Radial - 4 Leads
Packaging
Bulk
Description
CAP FILM 30UF 1.1KVDC RAD 4 LEAD
Detailed Description
30 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads
DataSheet
Mfr
TDK
Series
B3277* - MKP DC-Link
Features
Long Life
Packaging
Bulk
Tolerance
±10%
Capacitance
30 µF
Part Status
Active
Termination
PC Pins
Applications
DC Link, DC Filtering
Lead Spacing
2.067" (52.50mm)
Mounting Type
Through Hole
Package / Case
Radial - 4 Leads
Size / Dimension
2.264" L x 1.181" W (57.50mm x 30.00mm)
Base Product Number
B32778G
Dielectric Material
Polypropylene (PP), Metallized
Voltage Rating - DC
1100V (1.1kV)
Height - Seated (Max)
1.772" (45.00mm)
Operating Temperature
-40°C ~ 105°C
ESR (Equivalent Series Resistance)
8.2 mOhms
| Attribute | Value |
|---|---|
| Mfr | TDK |
| Series | B3277* - MKP DC-Link |
| Features | Long Life |
| Packaging | Bulk |
| Tolerance | ±10% |
| Capacitance | 30 µF |
| Part Status | Active |
| Termination | PC Pins |
| Applications | DC Link, DC Filtering |
| Lead Spacing | 2.067" (52.50mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.181" W (57.50mm x 30.00mm) |
| Base Product Number | B32778G |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 1100V (1.1kV) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| ESR (Equivalent Series Resistance) | 8.2 mOhms |
