Step1: Product

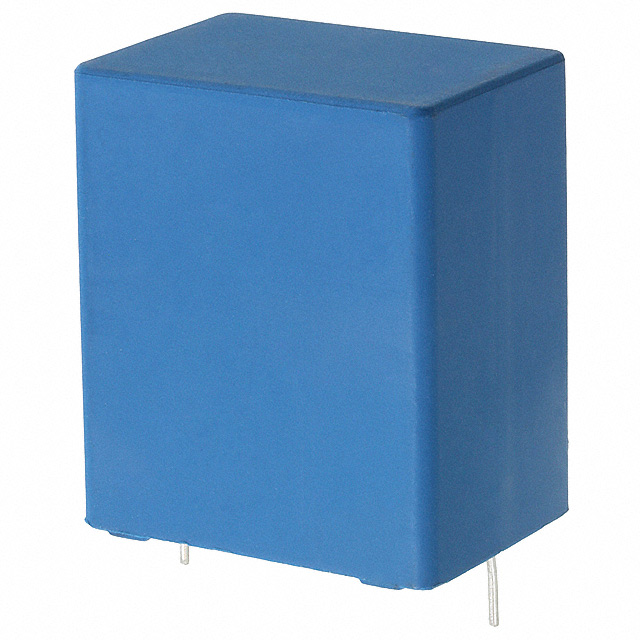

TDK B32774D0505K000
Image shown is a representation only
Manufacturer
Manufacturer No
B32774D0505K000
Quantity
657
Availability
In Stock
Package
Radial
Packaging
Bulk
Description
CAP FILM 5UF 10% 1.1KVDC RADIAL
Detailed Description
5 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial
DataSheet
Mfr
TDK
Series
B3277* - MKP DC-Link
Features
Long Life
Packaging
Bulk
Tolerance
±10%
Capacitance
5 µF
Part Status
Active
Termination
PC Pins
Applications
DC Link, DC Filtering
Lead Spacing
1.083" (27.50mm)
Mounting Type
Through Hole
Package / Case
Radial
Size / Dimension
1.240" L x 0.748" W (31.50mm x 19.00mm)
Base Product Number
B32774D
Dielectric Material
Polypropylene (PP), Metallized
Voltage Rating - DC
1100V (1.1kV)
Height - Seated (Max)
1.181" (30.00mm)
Operating Temperature
-40°C ~ 105°C
ESR (Equivalent Series Resistance)
10.9 mOhms
| Attribute | Value |
|---|---|
| Mfr | TDK |
| Series | B3277* - MKP DC-Link |
| Features | Long Life |
| Packaging | Bulk |
| Tolerance | ±10% |
| Capacitance | 5 µF |
| Part Status | Active |
| Termination | PC Pins |
| Applications | DC Link, DC Filtering |
| Lead Spacing | 1.083" (27.50mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.748" W (31.50mm x 19.00mm) |
| Base Product Number | B32774D |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 1100V (1.1kV) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| ESR (Equivalent Series Resistance) | 10.9 mOhms |
