Step1: Product

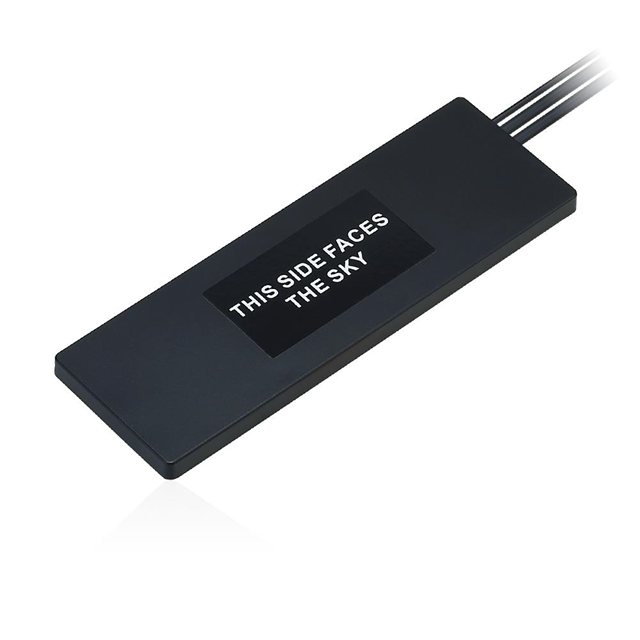

Taoglas Limited MA230.LBC.002
Image shown is a representation only
Manufacturer
Manufacturer No
MA230.LBC.002
Packaging
Bag
Description
RF ANT 700/892MHZ FLAT BAR SMA
Detailed Description
RF ANTENNA CDMA, GPS, GSM, LTE, UMTS, WLAN Flat Bar SMA Male Adhesive
DataSheet
Gain
2.16dBi, 0.42dBi
VSWR
3.3, 3.6
Series
Stream
Features
LNA, Filter
Packaging
Bag
Part Status
Active
Return Loss
-18dB
Termination
SMA Male
Antenna Type
Flat Bar
Applications
CDMA, GPS, GSM, LTE, UMTS, WLAN
Height (Max)
0.354" (9.00mm)
Manufacturer
Taoglas Limited
Mounting Type
Adhesive
Frequency Group
UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency Range
700MHz, 824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz
Number of Bands
3
Ingress Protection
IP67
RF Family/Standard
Cellular, Navigation, WiFi
Base Product Number
MA230
Frequency (Center/Band)
700MHz, 892MHz, 2GHz
| Attribute | Value |
|---|---|
| Gain | 2.16dBi, 0.42dBi |
| VSWR | 3.3, 3.6 |
| Series | Stream |
| Features | LNA, Filter |
| Packaging | Bag |
| Part Status | Active |
| Return Loss | -18dB |
| Termination | SMA Male |
| Antenna Type | Flat Bar |
| Applications | CDMA, GPS, GSM, LTE, UMTS, WLAN |
| Height (Max) | 0.354" (9.00mm) |
| Manufacturer | Taoglas Limited |
| Mounting Type | Adhesive |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency Range | 700MHz, 824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz |
| Number of Bands | 3 |
| Ingress Protection | IP67 |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Base Product Number | MA230 |
| Frequency (Center/Band) | 700MHz, 892MHz, 2GHz |
