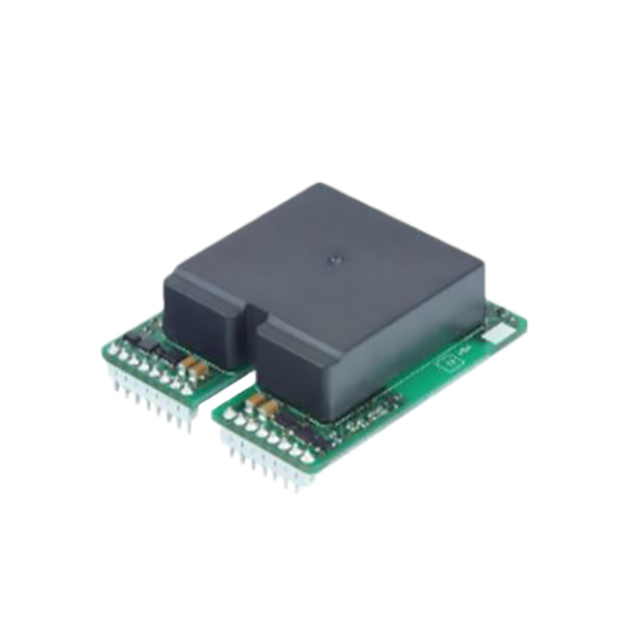

Tamura 2CG010DBC11N
Image shown is a representation only
Manufacturer
Manufacturer No
2CG010DBC11N
Package
Module
Packaging
Tray
Description
IC GATE DRVR HALF-BRIDGE MODULE
Detailed Description
Half-Bridge Gate Driver IC Non-Inverting Module
DataSheet
Gate Type
IGBT
Packaging
Tray
Input Type
Non-Inverting
Part Status
Active
Channel Type
Independent
Manufacturer
Tamura
Mounting Type
Through Hole
Package / Case
Module
Voltage - Supply
13V ~ 28V
Number of Drivers
2
Base Product Number
2CG010
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 85°C
Rise / Fall Time (Typ)
500ns, 500ns
Supplier Device Package
Module
Logic Voltage - VIL, VIH
1.65V, 3.85V
Current - Peak Output (Source, Sink)
43A, 43A
| Attribute | Value |
|---|---|
| Gate Type | IGBT |
| Packaging | Tray |
| Input Type | Non-Inverting |
| Part Status | Active |
| Channel Type | Independent |
| Manufacturer | Tamura |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Voltage - Supply | 13V ~ 28V |
| Number of Drivers | 2 |
| Base Product Number | 2CG010 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 85°C |
| Rise / Fall Time (Typ) | 500ns, 500ns |
| Supplier Device Package | Module |
| Logic Voltage - VIL, VIH | 1.65V, 3.85V |
| Current - Peak Output (Source, Sink) | 43A, 43A |
