Step1: Product
Taiyo Yuden CB2016T4R7M

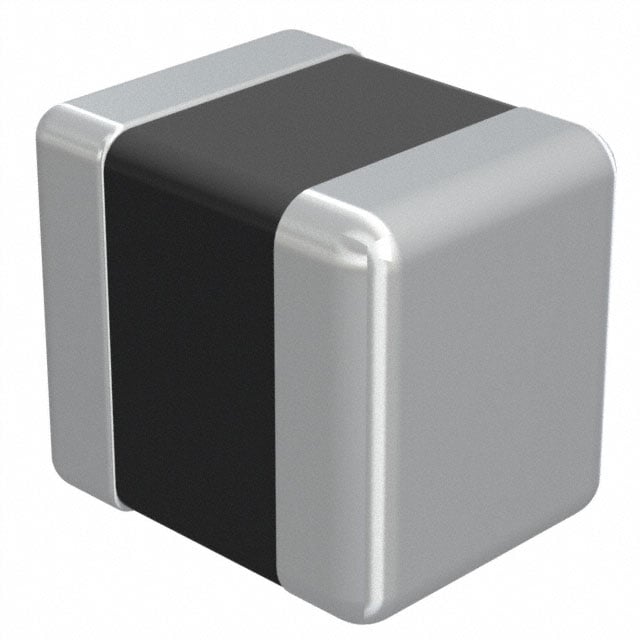

Image shown is a representation only
Manufacturer
Manufacturer No
CB2016T4R7M
Quantity
2,005
Availability
In Stock
Package
0806 (2016 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FIXED IND 4.7UH 740MA 325 MOHM
Detailed Description
4.7 µH Semi-Shielded Drum Core, Wirewound Inductor 740 mA 325mOhm Max 0806 (2016 Metric)
Datasheet
Mfr
Taiyo Yuden
Type
Drum Core, Wirewound
Series
CB
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Semi-Shielded
Tolerance
±20%
Inductance
4.7 µH
Mounting Type
Surface Mount
Package / Case
0806 (2016 Metric)
Material - Core
Ferrite
Size / Dimension
0.079" L x 0.063" W (2.00mm x 1.60mm)
DC Resistance (DCR)
325mOhm Max
Current Rating (Amps)
740 mA
Height - Seated (Max)
0.071" (1.80mm)
Operating Temperature
-40°C ~ 105°C
Supplier Device Package
0806 (2016 Metric)
Frequency - Self Resonant
45MHz
Current - Saturation (Isat)
340mA
Inductance Frequency - Test
7.96 MHz
| Attribute | Value |
|---|---|
| Mfr | Taiyo Yuden |
| Type | Drum Core, Wirewound |
| Series | CB |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Semi-Shielded |
| Tolerance | ±20% |
| Inductance | 4.7 µH |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Material - Core | Ferrite |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| DC Resistance (DCR) | 325mOhm Max |
| Current Rating (Amps) | 740 mA |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 0806 (2016 Metric) |
| Frequency - Self Resonant | 45MHz |
| Current - Saturation (Isat) | 340mA |
| Inductance Frequency - Test | 7.96 MHz |
