Step1: Product
Taiyo Yuden NRS2012T4R7MGJ

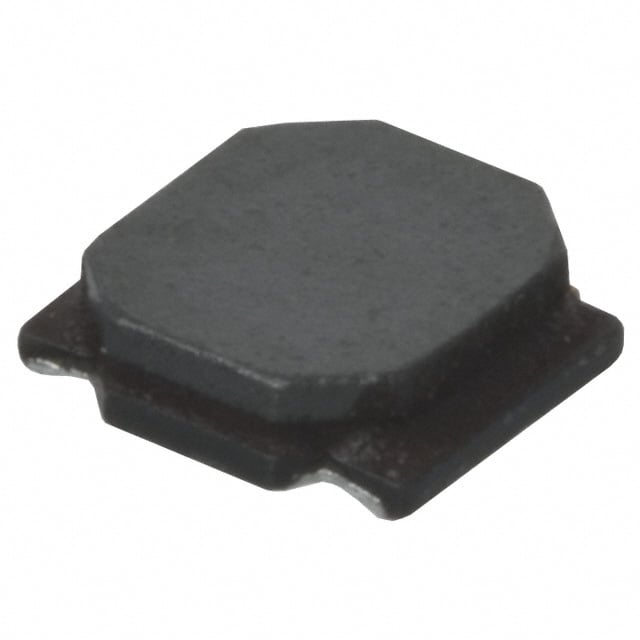

Image shown is a representation only
Manufacturer
Manufacturer No
NRS2012T4R7MGJ
Quantity
7110
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 4.7UH 910MA 241 MOHM
Detailed Description
4.7 µH Semi-Shielded Drum Core, Wirewound Inductor 910 mA 241mOhm Nonstandard
DataSheet
Mfr
Taiyo Yuden
Type
Drum Core, Wirewound
Series
NR, S Type
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Semi-Shielded
Tolerance
±20%
Inductance
4.7 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
0.079" L x 0.079" W (2.00mm x 2.00mm)
DC Resistance (DCR)
241mOhm
Current Rating (Amps)
910 mA
Height - Seated (Max)
0.047" (1.20mm)
Operating Temperature
-25°C ~ 120°C
Current - Saturation (Isat)
900mA
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Taiyo Yuden |
| Type | Drum Core, Wirewound |
| Series | NR, S Type |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Semi-Shielded |
| Tolerance | ±20% |
| Inductance | 4.7 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| DC Resistance (DCR) | 241mOhm |
| Current Rating (Amps) | 910 mA |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Operating Temperature | -25°C ~ 120°C |
| Current - Saturation (Isat) | 900mA |
| Inductance Frequency - Test | 100 kHz |
