Step1: Product
Taiwan Semiconductor Corporation TSM6968SDCA RVG

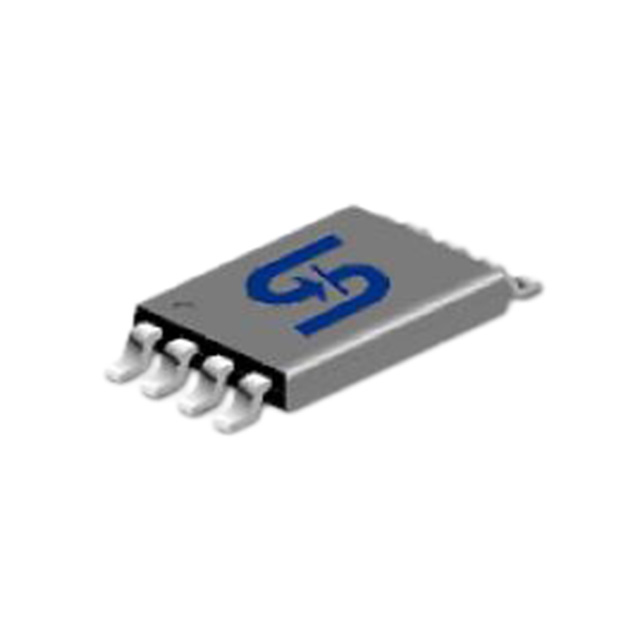

Image shown is a representation only
Manufacturer
Manufacturer No
TSM6968SDCA RVG
Package
8-TSSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET 2N-CH 20V 6.5A 8TSSOP
Detailed Description
Mosfet Array 20V 6.5A (Ta) 1.04W Surface Mount 8-TSSOP
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Power - Max
1.04W
Manufacturer
Taiwan Semiconductor Corporation
Configuration
2 N-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
8-TSSOP (0.173", 4.40mm Width)
Vgs(th) (Max) @ Id
1V @ 250µA
Base Product Number
TSM6968
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
22mOhm @ 6.5A, 4.5V
Supplier Device Package
8-TSSOP
Gate Charge (Qg) (Max) @ Vgs
15nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
950pF @ 10V
Current - Continuous Drain (Id) @ 25°C
6.5A (Ta)
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Power - Max | 1.04W |
| Manufacturer | Taiwan Semiconductor Corporation |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Base Product Number | TSM6968 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 6.5A, 4.5V |
| Supplier Device Package | 8-TSSOP |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 950pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 6.5A (Ta) |
