Step1: Product

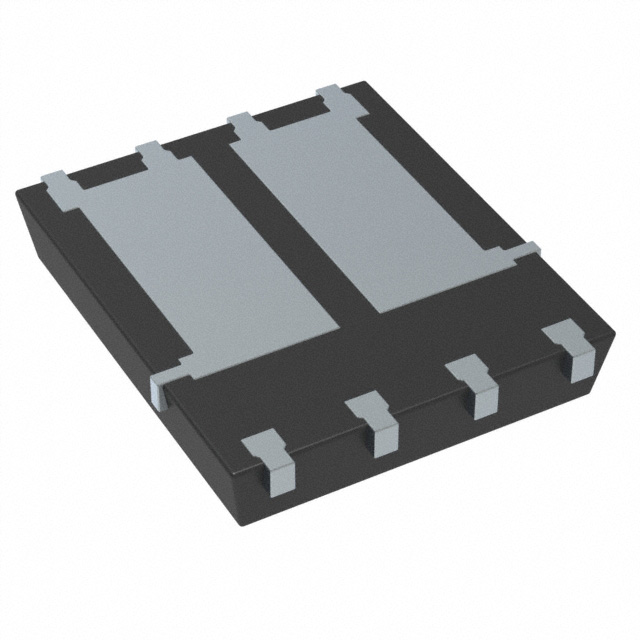

Taiwan Semiconductor Corporation TSM680P06DPQ56 RLG
Image shown is a representation only
Manufacturer
Manufacturer No
TSM680P06DPQ56 RLG
Package
8-PowerTDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET 2P-CH 60V 12A 8PDFN
Detailed Description
Mosfet Array 60V 12A (Tc) 3.5W Surface Mount 8-PDFN (5x6)
Datasheet
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
Power - Max
3.5W
Manufacturer
Taiwan Semiconductor Corporation
Configuration
2 P-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
8-PowerTDFN
Vgs(th) (Max) @ Id
2.5V @ 250µA
Base Product Number
TSM680
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
68mOhm @ 6A, 10V
Supplier Device Package
8-PDFN (5x6)
Gate Charge (Qg) (Max) @ Vgs
16.4nC @ 10V
Drain to Source Voltage (Vdss)
60V
Input Capacitance (Ciss) (Max) @ Vds
870pF @ 30V
Current - Continuous Drain (Id) @ 25°C
12A (Tc)
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 3.5W |
| Manufacturer | Taiwan Semiconductor Corporation |
| Configuration | 2 P-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Base Product Number | TSM680 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 68mOhm @ 6A, 10V |
| Supplier Device Package | 8-PDFN (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 16.4nC @ 10V |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance (Ciss) (Max) @ Vds | 870pF @ 30V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
