Step1: Product

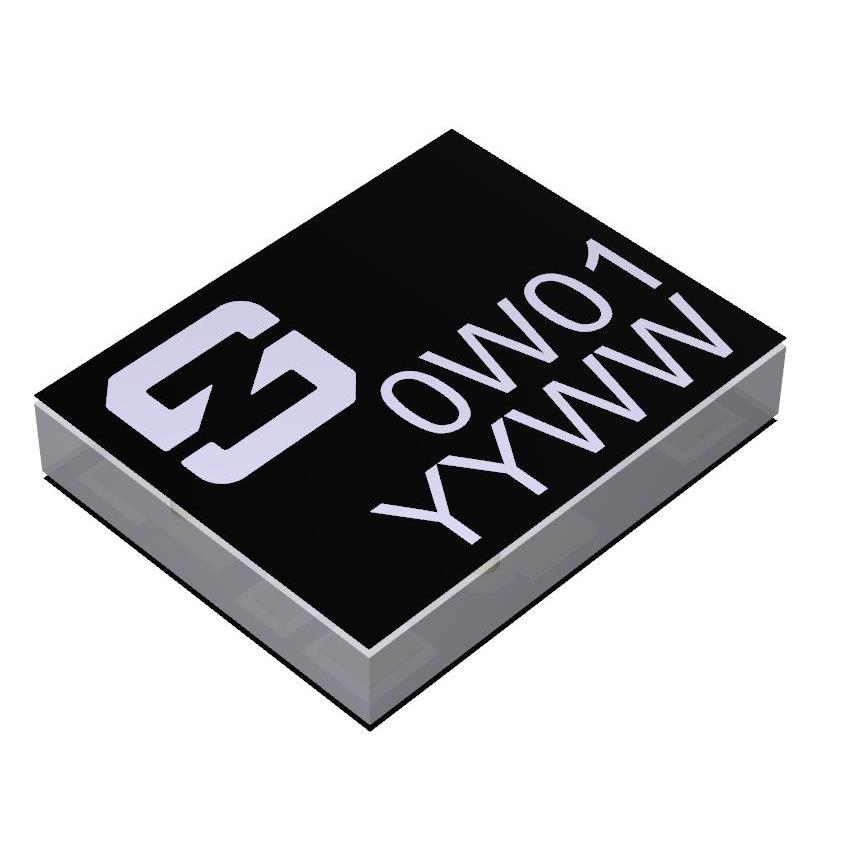

Synzen SZP-C-0W01
Image shown is a representation only
Manufacturer
Manufacturer No
SZP-C-0W01
Packaging
Tape & Reel (TR)
Description
WI-FI/BLE 2.4-2.5GHZ SMD CHIP
Detailed Description
RF ANTENNA Bluetooth, WLAN, Zigbee Chip Solder Surface Mount
DataSheet
Gain
1.65dBi
VSWR
2.1
Series
AULIN
Packaging
Tape & Reel (TR)
Part Status
Active
Power - Max
3 W
Return Loss
-8dB
Termination
Solder
Antenna Type
Chip
Applications
Bluetooth, WLAN, Zigbee
Height (Max)
0.035" (0.90mm)
Manufacturer
Synzen
Mounting Type
Surface Mount
Frequency Group
UHF (2GHz ~ 3GHz)
Frequency Range
2.4GHz ~ 2.5GHz
Number of Bands
1
RF Family/Standard
802.15.4, Bluetooth, WiFi
Frequency (Center/Band)
2.4GHz
| Attribute | Value |
|---|---|
| Gain | 1.65dBi |
| VSWR | 2.1 |
| Series | AULIN |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Power - Max | 3 W |
| Return Loss | -8dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | Bluetooth, WLAN, Zigbee |
| Height (Max) | 0.035" (0.90mm) |
| Manufacturer | Synzen |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz |
| Number of Bands | 1 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Frequency (Center/Band) | 2.4GHz |
