Step1: Product

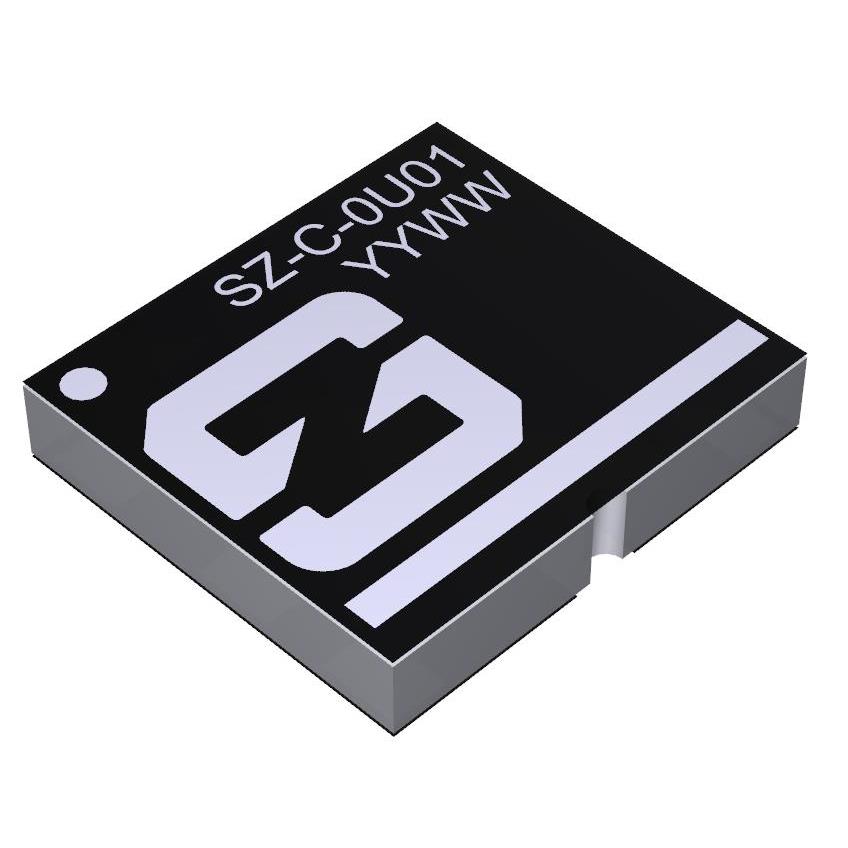

Synzen SZP-C-0U01
Image shown is a representation only
Manufacturer
Manufacturer No
SZP-C-0U01
Packaging
Tape & Reel (TR)
Description
UWB ANT 3-7GHZ SMD CHIP
Detailed Description
RF ANTENNA UWB Chip Solder Surface Mount
Datasheet
Gain
3.6dBi
VSWR
2.3
Series
RIGEL
Packaging
Tape & Reel (TR)
Return Loss
-10dB
Termination
Solder
Antenna Type
Chip
Applications
UWB
Height (Max)
0.063" (1.60mm)
Manufacturer
Synzen
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
3GHz ~ 7GHz
Number of Bands
1
RF Family/Standard
Ultra Wide Band
Frequency (Center/Band)
3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz
| Attribute | Value |
|---|---|
| Gain | 3.6dBi |
| VSWR | 2.3 |
| Series | RIGEL |
| Packaging | Tape & Reel (TR) |
| Return Loss | -10dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | UWB |
| Height (Max) | 0.063" (1.60mm) |
| Manufacturer | Synzen |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 3GHz ~ 7GHz |
| Number of Bands | 1 |
| RF Family/Standard | Ultra Wide Band |
| Frequency (Center/Band) | 3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz |
