Step1: Product

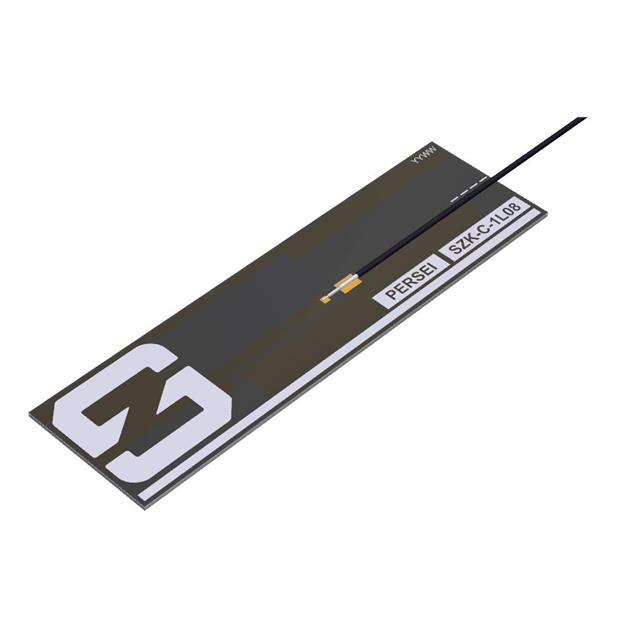

Synzen SZK-C-1L08
Image shown is a representation only
Manufacturer
Manufacturer No
SZK-C-1L08
Packaging
Bag
Description
4G LTE FLAT PATCH IPEX (FR4)
Detailed Description
RF ANTENNA 2G, 3G, 4G, LTE PCB Trace U.FL (UMCC), I-PEX MHF1 Surface Mount
DataSheet
Gain
2.3dBi, 2.6dBi, 2.9dBi, 3.5dBi
VSWR
1.5, 1.7, 1.75, 2.9
Features
Cable - 150mm
Packaging
Bag
Part Status
Active
Power - Max
5 W
Return Loss
-6dB, -11.3dB, -11.4dB, -13.8dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
PCB Trace
Applications
2G, 3G, 4G, LTE
Height (Max)
0.024" (0.60mm)
Manufacturer
Synzen
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Number of Bands
4
RF Family/Standard
Cellular
Frequency (Center/Band)
829MHz, 1.955GHz, 2.35GHz, 2.595GHz
| Attribute | Value |
|---|---|
| Gain | 2.3dBi, 2.6dBi, 2.9dBi, 3.5dBi |
| VSWR | 1.5, 1.7, 1.75, 2.9 |
| Features | Cable - 150mm |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 5 W |
| Return Loss | -6dB, -11.3dB, -11.4dB, -13.8dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | PCB Trace |
| Applications | 2G, 3G, 4G, LTE |
| Height (Max) | 0.024" (0.60mm) |
| Manufacturer | Synzen |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz |
| Number of Bands | 4 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 829MHz, 1.955GHz, 2.35GHz, 2.595GHz |
