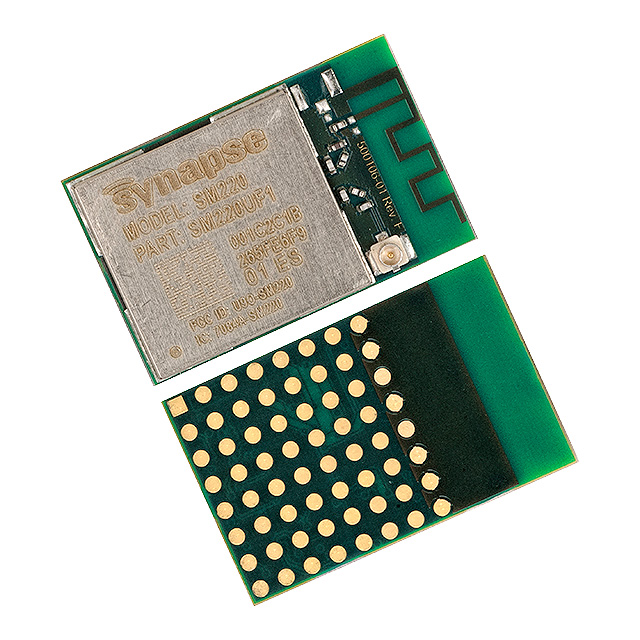

Synapse Wireless SM220UF1
Image shown is a representation only
Manufacturer
Manufacturer No
SM220UF1
Package
64-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF TXRX MOD CHIP + U.FL SMD
Detailed Description
802.15.4 Transceiver Module 2.4GHz Integrated, Chip + U.FL Surface Mount
DataSheet
Mfr
Synapse Wireless
Series
SNAP® RF Engine®
Data Rate
2Mbps
Frequency
2.4GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Modulation
DSSS, O-QPSK
Memory Size
128kB Flash, 4kB EEPROM
Part Status
Active
Sensitivity
-103dBm
Antenna Type
Integrated, Chip + U.FL
Mounting Type
Surface Mount
Package / Case
64-SMD Module
Power - Output
20dBm
Voltage - Supply
2V ~ 3.6V
Serial Interfaces
I2C, JTAG, SPI, UART
RF Family/Standard
802.15.4
Base Product Number
SM220
Current - Receiving
7.8mA ~ 22mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
55mA ~ 150mA
| Attribute | Value |
|---|---|
| Mfr | Synapse Wireless |
| Series | SNAP® RF Engine® |
| Data Rate | 2Mbps |
| Frequency | 2.4GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Modulation | DSSS, O-QPSK |
| Memory Size | 128kB Flash, 4kB EEPROM |
| Part Status | Active |
| Sensitivity | -103dBm |
| Antenna Type | Integrated, Chip + U.FL |
| Mounting Type | Surface Mount |
| Package / Case | 64-SMD Module |
| Power - Output | 20dBm |
| Voltage - Supply | 2V ~ 3.6V |
| Serial Interfaces | I2C, JTAG, SPI, UART |
| RF Family/Standard | 802.15.4 |
| Base Product Number | SM220 |
| Current - Receiving | 7.8mA ~ 22mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 55mA ~ 150mA |
