Step1: Product

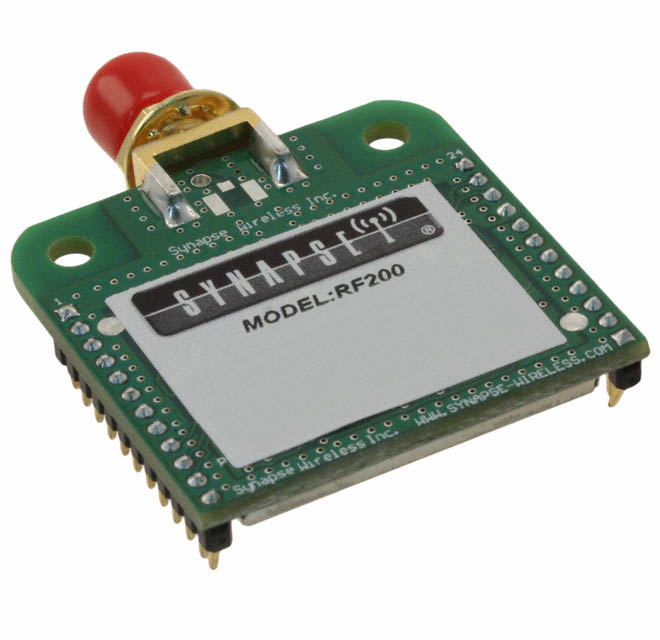

Synapse Wireless RF200PD1
Image shown is a representation only
Manufacturer
Manufacturer No
RF200PD1
Package
Module
Packaging
Tray
Description
RF TXRX MOD 802.15.4RPSMA TH
Detailed Description
802.15.4 Transceiver Module 2.4GHz Antenna Not Included, RP-SMA Through Hole
DataSheet
Mfr
Synapse Wireless
Series
SNAP® RF Engine®
Data Rate
2Mbps
Frequency
2.4GHz
Packaging
Tray
Modulation
DSSS, O-QPSK
Memory Size
128kB Flash, 58kB RAM
Part Status
Obsolete
Sensitivity
-103dBm
Antenna Type
Antenna Not Included, RP-SMA
Mounting Type
Through Hole
Package / Case
Module
Power - Output
15dBm
Voltage - Supply
2.7V ~ 3.6V
Serial Interfaces
I2C, JTAG, SPI, UART
RF Family/Standard
802.15.4
Current - Receiving
20mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
80mA
| Attribute | Value |
|---|---|
| Mfr | Synapse Wireless |
| Series | SNAP® RF Engine® |
| Data Rate | 2Mbps |
| Frequency | 2.4GHz |
| Packaging | Tray |
| Modulation | DSSS, O-QPSK |
| Memory Size | 128kB Flash, 58kB RAM |
| Part Status | Obsolete |
| Sensitivity | -103dBm |
| Antenna Type | Antenna Not Included, RP-SMA |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Power - Output | 15dBm |
| Voltage - Supply | 2.7V ~ 3.6V |
| Serial Interfaces | I2C, JTAG, SPI, UART |
| RF Family/Standard | 802.15.4 |
| Current - Receiving | 20mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 80mA |
