Step1: Product

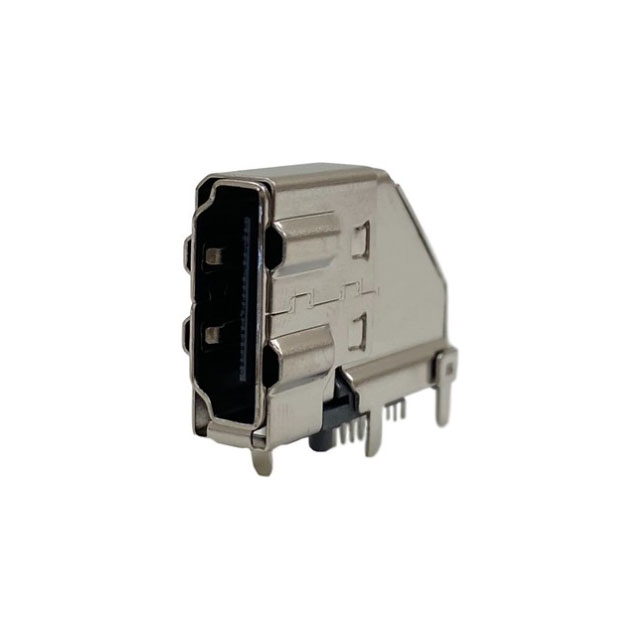

Switchcraft Inc. RAVHD19ETR
Image shown is a representation only
Manufacturer
Manufacturer No
RAVHD19ETR
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
HDMI TYPE A RECEPTACLE, VERTICAL
Detailed Description
HDMI HDMI 2.0 Receptacle Connector 19 Position Through Hole, Right Angle
DataSheet
Gender
Receptacle
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
Switchcraft Inc.
Mating Cycles
5000
Mounting Type
Through Hole, Right Angle
Connector Type
HDMI
Contact Finish
Gold
Specifications
HDMI 2.0
Number of Ports
1
Voltage - Rated
40V
Insulation Color
Black
Mounting Feature
Vertical, Flag
Number of Contacts
19
Base Product Number
RAVHD1
Current Rating (Amps)
0.5A
Operating Temperature
-25°C ~ 85°C
Shell/Shielding Material
Brass
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Switchcraft Inc. |
| Mating Cycles | 5000 |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | HDMI |
| Contact Finish | Gold |
| Specifications | HDMI 2.0 |
| Number of Ports | 1 |
| Voltage - Rated | 40V |
| Insulation Color | Black |
| Mounting Feature | Vertical, Flag |
| Number of Contacts | 19 |
| Base Product Number | RAVHD1 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -25°C ~ 85°C |
| Shell/Shielding Material | Brass |
