Step1: Product

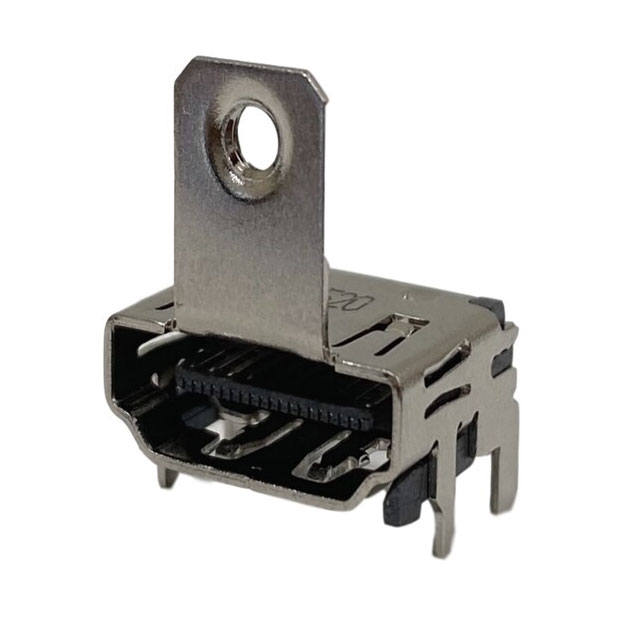

Switchcraft Inc. RAHHD19SFTR
Image shown is a representation only
Manufacturer
Manufacturer No
RAHHD19SFTR
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
HDMI TYPE A RECEPTACLE, HORIZONT
Detailed Description
HDMI HDMI 2.0 Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
Datasheet
Gender
Receptacle
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Termination
Solder
Manufacturer
Switchcraft Inc.
Mating Cycles
5000
Mounting Type
Surface Mount, Right Angle; Through Hole
Connector Type
HDMI
Contact Finish
Gold
Specifications
HDMI 2.0
Number of Ports
1
Voltage - Rated
40V
Insulation Color
Black
Mounting Feature
Flange, Horizontal
Number of Contacts
19
Base Product Number
RAHHD1
Current Rating (Amps)
0.5A
Operating Temperature
-25°C ~ 85°C
Shell/Shielding Material
Brass
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Manufacturer | Switchcraft Inc. |
| Mating Cycles | 5000 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Connector Type | HDMI |
| Contact Finish | Gold |
| Specifications | HDMI 2.0 |
| Number of Ports | 1 |
| Voltage - Rated | 40V |
| Insulation Color | Black |
| Mounting Feature | Flange, Horizontal |
| Number of Contacts | 19 |
| Base Product Number | RAHHD1 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -25°C ~ 85°C |
| Shell/Shielding Material | Brass |
