Step1: Product

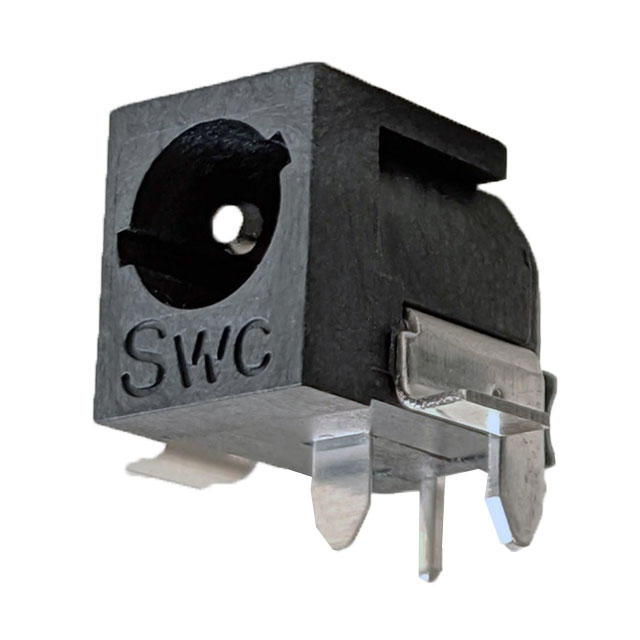

Switchcraft Inc. RASH712BKZ
Image shown is a representation only
Manufacturer
Manufacturer No
RASH712BKZ
Packaging
Bulk
Description
DC POWER JACK, BKZ LOCKING SERIE
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Surface Mount, Right Angle; Through Hole
DataSheet
Gender
Male
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder
Manufacturer
Switchcraft Inc.
Body Material
Copper Alloy
Mounting Type
Surface Mount, Right Angle; Through Hole
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID), 0.248" (6.30mm OD)
Voltage - Rated
24V
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Insulation Color
Black
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
RASH71
Current Rating (Amps)
5 A
Operating Temperature
-30°C ~ 65°C
Contact Material - Plating
Silver
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Switchcraft Inc. |
| Body Material | Copper Alloy |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID), 0.248" (6.30mm OD) |
| Voltage - Rated | 24V |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Insulation Color | Black |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | RASH71 |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -30°C ~ 65°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
