Step1: Product
Switchcraft Inc. PJRAN1X1U01AUX

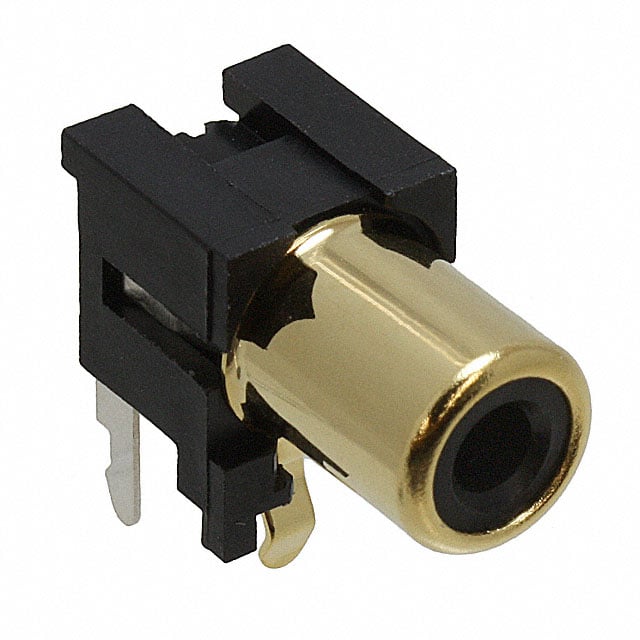

Image shown is a representation only
Manufacturer
Manufacturer No
PJRAN1X1U01AUX
Packaging
Bulk
Description
CONN RCA JACK MONO 3.2MM R/A
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
Datasheet
Mfr
Switchcraft Inc.
Gender
Female
Series
PJR
Packaging
Bulk
Shielding
Unshielded
Body Color
Gold, Black
Termination
Solder
Signal Lines
Mono
Body Material
Copper Alloy
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack
Actual Diameter
0.134" (3.40mm ID), 0.328" (8.33mm OD)
Voltage - Rated
34VAC/DC
Contact Material
Copper Alloy
Housing Material
Acrylonitrile Butadiene Styrene (ABS)
Insulation Color
Black
Internal Switch(s)
Single Switch
Base Product Number
PJRAN1
Current Rating (Amps)
2 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Gold
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | Switchcraft Inc. |
| Gender | Female |
| Series | PJR |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Gold, Black |
| Termination | Solder |
| Signal Lines | Mono |
| Body Material | Copper Alloy |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack |
| Actual Diameter | 0.134" (3.40mm ID), 0.328" (8.33mm OD) |
| Voltage - Rated | 34VAC/DC |
| Contact Material | Copper Alloy |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Insulation Color | Black |
| Internal Switch(s) | Single Switch |
| Base Product Number | PJRAN1 |
| Current Rating (Amps) | 2 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Gold |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
