Step1: Product

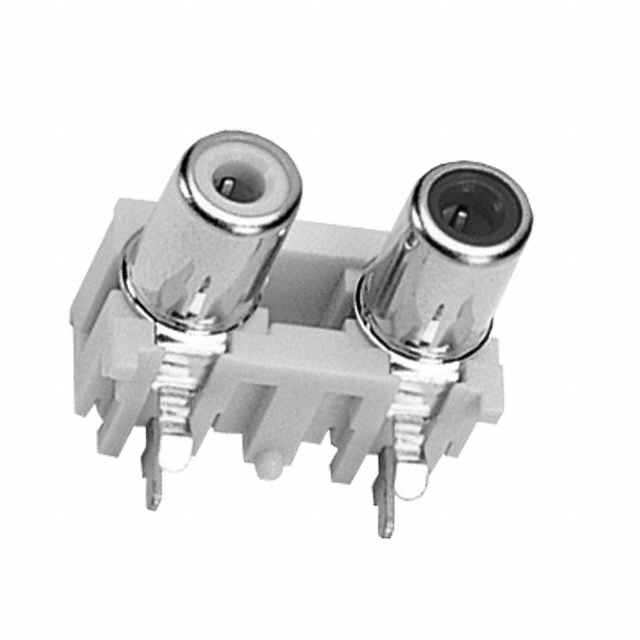

Switchcraft Inc. PJRAN2X1U02X
Image shown is a representation only
Manufacturer
Manufacturer No
PJRAN2X1U02X
Packaging
Bulk
Description
CONN RCA JACK MONO 3.2MM R/A
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
DataSheet
Mfr
Switchcraft Inc.
Gender
Female
Series
PJR
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver, White
Part Status
Active
Termination
Solder
Signal Lines
Mono
Body Material
Copper Alloy
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack
Voltage - Rated
34VAC/DC
Contact Material
Copper Alloy
Housing Material
Acrylonitrile Butadiene Styrene (ABS)
Insulation Color
Red, White
Internal Switch(s)
Single Switch
Base Product Number
PJRAN2
Current Rating (Amps)
2 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Tin
Number of Positions/Contacts
2 Sets of 2 Conductors, 6 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | Switchcraft Inc. |
| Gender | Female |
| Series | PJR |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver, White |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Mono |
| Body Material | Copper Alloy |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack |
| Voltage - Rated | 34VAC/DC |
| Contact Material | Copper Alloy |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Insulation Color | Red, White |
| Internal Switch(s) | Single Switch |
| Base Product Number | PJRAN2 |
| Current Rating (Amps) | 2 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 2 Sets of 2 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
