Step1: Product

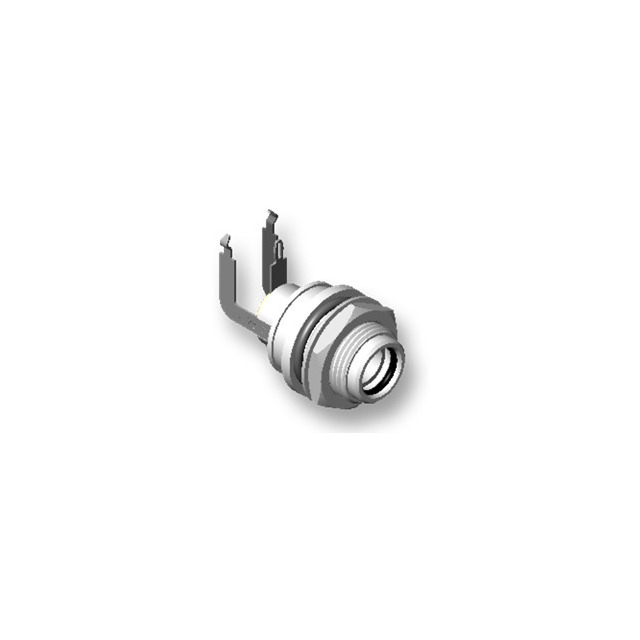

Switchcraft Inc. L712RASH
Image shown is a representation only
Manufacturer
Manufacturer No
L712RASH
Packaging
Bulk
Description
SEALED POWER JACK, 0.10" (2.5MM)
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.54mm OD (0.218") Panel Mount, Through Hole, Right Angle
DataSheet
Gender
Male
Features
Mounting Hardware
Packaging
Bulk
Shielding
Unshielded
Body Color
White
Part Status
Active
Termination
Solder
Thread Size
7/16"-32
Manufacturer
Switchcraft Inc.
Body Material
Copper Alloy
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID)
Voltage - Rated
24VDC
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
IP68
Internal Switch(s)
Single Switch, Normally Closed
Current Rating (Amps)
7.5 A
Operating Temperature
-40°C ~ 105°C
Contact Material - Plating
Silver
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.54mm OD (0.218")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Mounting Hardware |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | White |
| Part Status | Active |
| Termination | Solder |
| Thread Size | 7/16"-32 |
| Manufacturer | Switchcraft Inc. |
| Body Material | Copper Alloy |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID) |
| Voltage - Rated | 24VDC |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP68 |
| Internal Switch(s) | Single Switch, Normally Closed |
| Current Rating (Amps) | 7.5 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.54mm OD (0.218") |
