Step1: Product

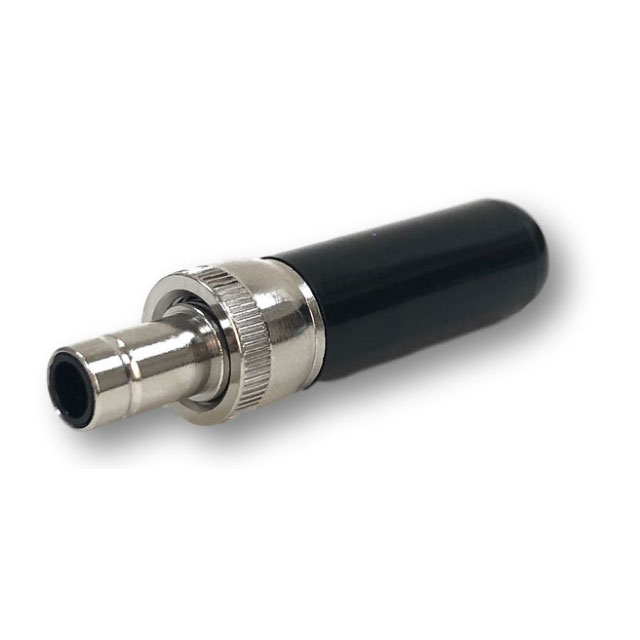

Switchcraft Inc. 760KHZ
Image shown is a representation only
Manufacturer
Manufacturer No
760KHZ
Packaging
Bulk
Description
DC POWER PLUG, Z SERIES, 2.5MM X
Detailed Description
Power Barrel Connector Plug 2.50mm ID (0.098"), 5.50mm OD (0.217") Free Hanging (In-Line)
Datasheet
Gender
Female
Features
Cable Clamp, Thread Lock
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver, Black
Termination
Solder Eyelet(s)
Manufacturer
Switchcraft Inc.
Body Material
Brass
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug
Actual Diameter
0.098" (2.50mm ID), 0.217" (5.50mm OD)
Voltage - Rated
24VDC
Contact Material
Brass
Housing Material
Thermoplastic
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.374" (9.50mm)
Current Rating (Amps)
7.5 A
Contact Material - Plating
Tin
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Female |
| Features | Cable Clamp, Thread Lock |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Termination | Solder Eyelet(s) |
| Manufacturer | Switchcraft Inc. |
| Body Material | Brass |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass |
| Housing Material | Thermoplastic |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.374" (9.50mm) |
| Current Rating (Amps) | 7.5 A |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
