Step1: Product
Sunon Fans SP101A-1123HST

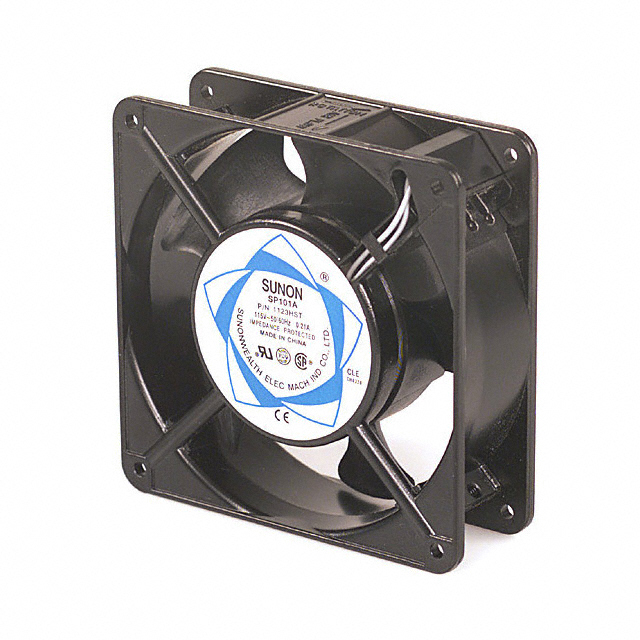

Image shown is a representation only
Manufacturer
Manufacturer No
SP101A-1123HST
Description
FAN AXIAL 120X38MM 115VAC TERM
Detailed Description
Fan Tubeaxial 115VAC Square - 120mm L x 120mm H Sleeve 105.0 CFM (2.94m³/min) 2 Terminals
Datasheet
RPM
2900 RPM
Noise
48.0dB(A)
Width
38.00mm
Series
SP
Weight
1.2 lbs (544.3 g)
Air Flow
105.0 CFM (2.94m³/min)
Fan Type
Tubeaxial
Termination
2 Terminals
Bearing Type
Sleeve
Manufacturer
Sunon Fans
Power (Watts)
18.00W
Voltage Range
85 ~ 125VAC
Approval Agency
CSA, TUV, UL
Static Pressure
0.300 in H2O (74.7 Pa)
Voltage - Rated
115VAC
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Aluminum
Size / Dimension
Square - 120mm L x 120mm H
Current Rating (Amps)
0.180A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| RPM | 2900 RPM |
| Noise | 48.0dB(A) |
| Width | 38.00mm |
| Series | SP |
| Weight | 1.2 lbs (544.3 g) |
| Air Flow | 105.0 CFM (2.94m³/min) |
| Fan Type | Tubeaxial |
| Termination | 2 Terminals |
| Bearing Type | Sleeve |
| Manufacturer | Sunon Fans |
| Power (Watts) | 18.00W |
| Voltage Range | 85 ~ 125VAC |
| Approval Agency | CSA, TUV, UL |
| Static Pressure | 0.300 in H2O (74.7 Pa) |
| Voltage - Rated | 115VAC |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Size / Dimension | Square - 120mm L x 120mm H |
| Current Rating (Amps) | 0.180A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
