Step1: Product

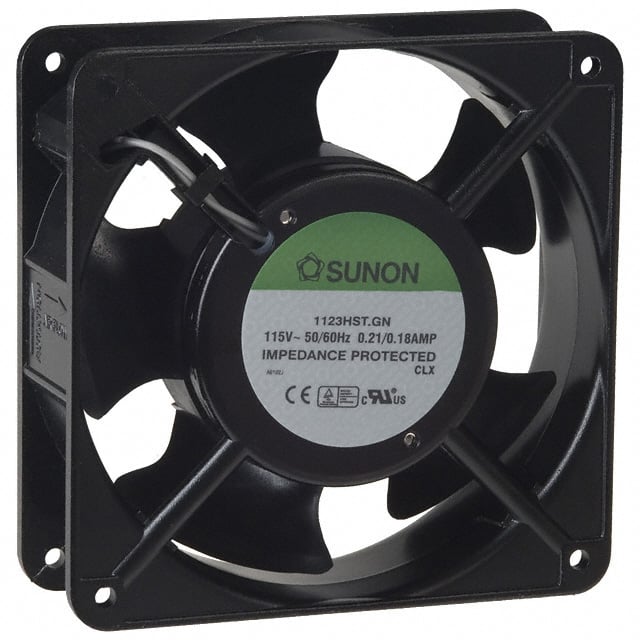

Sunon Fans SP101A-1123HBT.GN
Image shown is a representation only
Manufacturer
Manufacturer No
SP101A-1123HBT.GN
Packaging
Bulk
Description
FAN AXIAL 120X38MM 115VAC TERM
Detailed Description
Fan Tubeaxial 115VAC Square - 120mm L x 120mm H Ball 107.0 CFM (3.00m³/min) 2 Terminals
Datasheet
RPM
3050 RPM
Noise
50.0dB(A)
Width
38.00mm
Series
SP
Weight
1.2 lbs (544.3 g)
Air Flow
107.0 CFM (3.00m³/min)
Fan Type
Tubeaxial
Packaging
Bulk
Termination
2 Terminals
Bearing Type
Ball
Manufacturer
Sunon Fans
Power (Watts)
18.00W
Voltage Range
85 ~ 125VAC
Approval Agency
CE, CUR, TUV, UL
Static Pressure
0.320 in H2O (79.7 Pa)
Voltage - Rated
115VAC
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Aluminum
Size / Dimension
Square - 120mm L x 120mm H
Base Product Number
SP101
Current Rating (Amps)
0.180A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| RPM | 3050 RPM |
| Noise | 50.0dB(A) |
| Width | 38.00mm |
| Series | SP |
| Weight | 1.2 lbs (544.3 g) |
| Air Flow | 107.0 CFM (3.00m³/min) |
| Fan Type | Tubeaxial |
| Packaging | Bulk |
| Termination | 2 Terminals |
| Bearing Type | Ball |
| Manufacturer | Sunon Fans |
| Power (Watts) | 18.00W |
| Voltage Range | 85 ~ 125VAC |
| Approval Agency | CE, CUR, TUV, UL |
| Static Pressure | 0.320 in H2O (79.7 Pa) |
| Voltage - Rated | 115VAC |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Size / Dimension | Square - 120mm L x 120mm H |
| Base Product Number | SP101 |
| Current Rating (Amps) | 0.180A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
