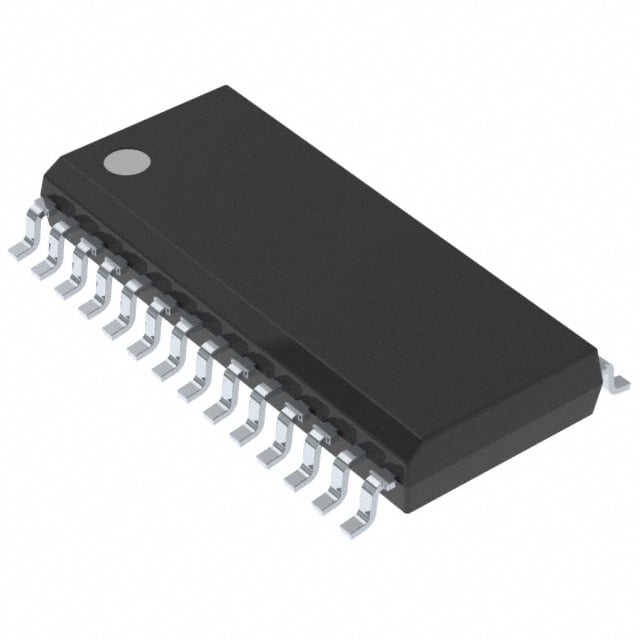

STMicroelectronics VN771KPTR-E
Image shown is a representation only
Manufacturer
Manufacturer No
VN771KPTR-E
Package
28-SOIC (0.295", 7.50mm Width)
Packaging
Tape & Reel (TR)
Description
IC HALF BRIDGE DRIVER 9A 28SO
Detailed Description
Half Bridge (2) Driver DC Motors, General Purpose, Relays Power MOSFET 28-SO
DataSheet
Series
OMNIFET II™, VIPower™
Features
Status Flag
Interface
Logic
Load Type
Inductive
Packaging
Tape & Reel (TR)
Technology
Power MOSFET
Part Status
Obsolete
Applications
DC Motors, General Purpose, Relays
Manufacturer
STMicroelectronics
Rds On (Typ)
95mOhm (Max)
Mounting Type
Surface Mount
Package / Case
28-SOIC (0.295", 7.50mm Width)
Voltage - Load
5.5V ~ 36V
Fault Protection
Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO
Voltage - Supply
5.5V ~ 36V
Base Product Number
VN771
Output Configuration
Half Bridge (2)
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
28-SO
Current - Output / Channel
9A
| Attribute | Value |
|---|---|
| Series | OMNIFET II™, VIPower™ |
| Features | Status Flag |
| Interface | Logic |
| Load Type | Inductive |
| Packaging | Tape & Reel (TR) |
| Technology | Power MOSFET |
| Part Status | Obsolete |
| Applications | DC Motors, General Purpose, Relays |
| Manufacturer | STMicroelectronics |
| Rds On (Typ) | 95mOhm (Max) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Voltage - Load | 5.5V ~ 36V |
| Fault Protection | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Voltage - Supply | 5.5V ~ 36V |
| Base Product Number | VN771 |
| Output Configuration | Half Bridge (2) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 28-SO |
| Current - Output / Channel | 9A |
