STMicroelectronics MASTERGAN1TR

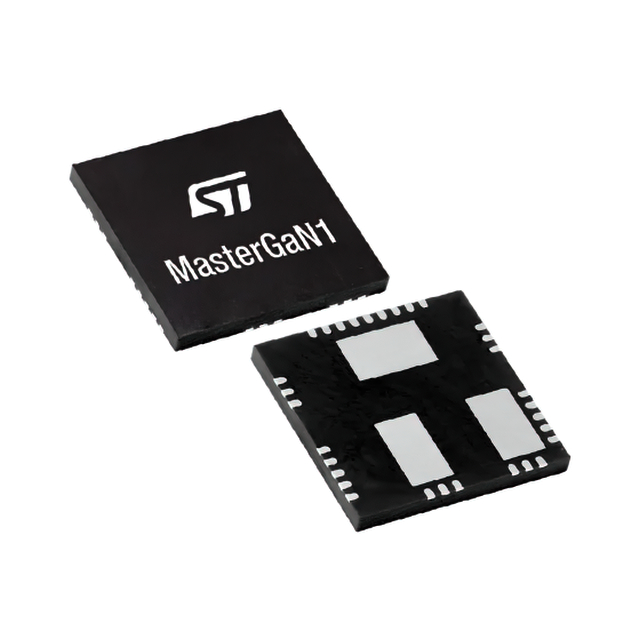

Image shown is a representation only
Manufacturer
Manufacturer No
MASTERGAN1TR
Quantity
1542
Availability
In Stock
Package
31-VQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC HALF BRIDGE DRIVER 10A 31QFN
Detailed Description
Half Bridge Driver General Purpose DMOS 31-QFN (9x9)
DataSheet
Features
Bootstrap Circuit
Load Type
Capacitive, Inductive
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
DMOS
Part Status
Last Time Buy
Applications
General Purpose
Manufacturer
STMicroelectronics
Rds On (Typ)
150mOhm
Mounting Type
Surface Mount
Package / Case
31-VQFN Exposed Pad
Voltage - Load
600V (Max)
Fault Protection
Over Temperature, UVLO
Voltage - Supply
4.75V ~ 9.5V
Base Product Number
MASTERGAN1
Output Configuration
Half Bridge
Current - Peak Output
17A
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
31-QFN (9x9)
Current - Output / Channel
10A
| Attribute | Value |
|---|---|
| Features | Bootstrap Circuit |
| Load Type | Capacitive, Inductive |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | DMOS |
| Part Status | Last Time Buy |
| Applications | General Purpose |
| Manufacturer | STMicroelectronics |
| Rds On (Typ) | 150mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 31-VQFN Exposed Pad |
| Voltage - Load | 600V (Max) |
| Fault Protection | Over Temperature, UVLO |
| Voltage - Supply | 4.75V ~ 9.5V |
| Base Product Number | MASTERGAN1 |
| Output Configuration | Half Bridge |
| Current - Peak Output | 17A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 31-QFN (9x9) |
| Current - Output / Channel | 10A |
