STMicroelectronics MASTERGAN4LTR

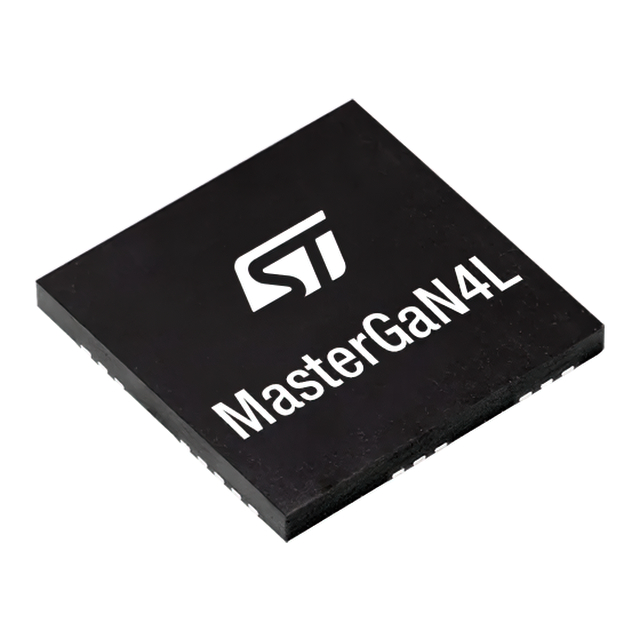

Image shown is a representation only
Manufacturer
Manufacturer No
MASTERGAN4LTR
Quantity
8
Availability
In Stock
Package
31-VQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MASTERGAN4LTR
Detailed Description
Half Bridge Driver General Purpose MOSFET (Metal Oxide) 31-QFN (9x9)
DataSheet
Features
Bootstrap Circuit
Interface
Logic
Load Type
Inductive, Capacitive, Resistive
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Last Time Buy
Applications
General Purpose
Manufacturer
STMicroelectronics
Rds On (Typ)
225mOhm
Mounting Type
Surface Mount
Package / Case
31-VQFN Exposed Pad
Voltage - Load
520V (Max)
Fault Protection
Over Temperature, UVLO
Voltage - Supply
4.75V ~ 9.5V
Base Product Number
MASTERGAN4
Output Configuration
Half Bridge
Current - Peak Output
12A
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
31-QFN (9x9)
Current - Output / Channel
6.5A
| Attribute | Value |
|---|---|
| Features | Bootstrap Circuit |
| Interface | Logic |
| Load Type | Inductive, Capacitive, Resistive |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Last Time Buy |
| Applications | General Purpose |
| Manufacturer | STMicroelectronics |
| Rds On (Typ) | 225mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 31-VQFN Exposed Pad |
| Voltage - Load | 520V (Max) |
| Fault Protection | Over Temperature, UVLO |
| Voltage - Supply | 4.75V ~ 9.5V |
| Base Product Number | MASTERGAN4 |
| Output Configuration | Half Bridge |
| Current - Peak Output | 12A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 31-QFN (9x9) |
| Current - Output / Channel | 6.5A |
