STMicroelectronics STG3699AQTR

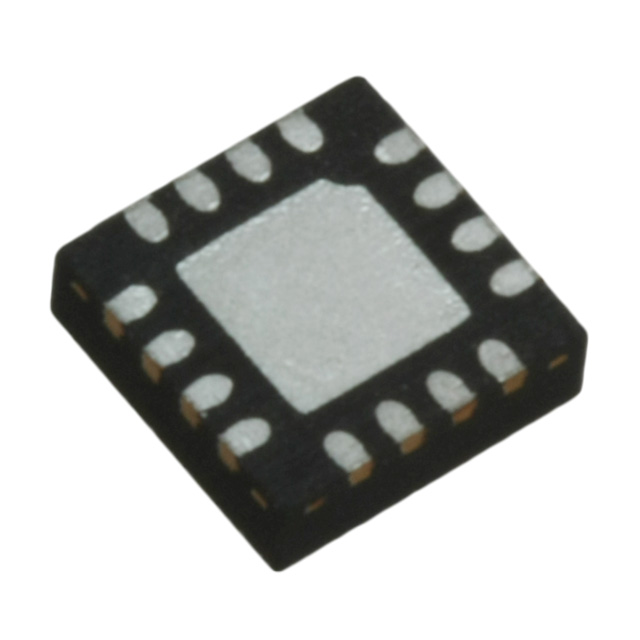

Image shown is a representation only
Manufacturer
Manufacturer No
STG3699AQTR
Package
16-VFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC SWITCH SPDT X 4 450MOHM 16QFN
Detailed Description
4 Circuit IC Switch 2:1 450mOhm 16-QFN (3x3)
DataSheet
Crosstalk
-54dB @ 100kHz
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Manufacturer
STMicroelectronics
Mounting Type
Surface Mount
-3db Bandwidth
50MHz
Package / Case
16-VFQFN Exposed Pad
Switch Circuit
SPDT
Charge Injection
35pC
Number of Circuits
4
Base Product Number
STG3699
Operating Temperature
-55°C ~ 125°C (TA)
Supplier Device Package
16-QFN (3x3)
On-State Resistance (Max)
450mOhm
Switch Time (Ton, Toff) (Max)
55ns, 30ns
Voltage - Supply, Single (V+)
1.65V ~ 4.3V
Current - Leakage (IS(off)) (Max)
20nA
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
60mOhm
Channel Capacitance (CS(off), CD(off))
5pF
| Attribute | Value |
|---|---|
| Crosstalk | -54dB @ 100kHz |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Manufacturer | STMicroelectronics |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 50MHz |
| Package / Case | 16-VFQFN Exposed Pad |
| Switch Circuit | SPDT |
| Charge Injection | 35pC |
| Number of Circuits | 4 |
| Base Product Number | STG3699 |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Supplier Device Package | 16-QFN (3x3) |
| On-State Resistance (Max) | 450mOhm |
| Switch Time (Ton, Toff) (Max) | 55ns, 30ns |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
