STMicroelectronics STG3692QTR

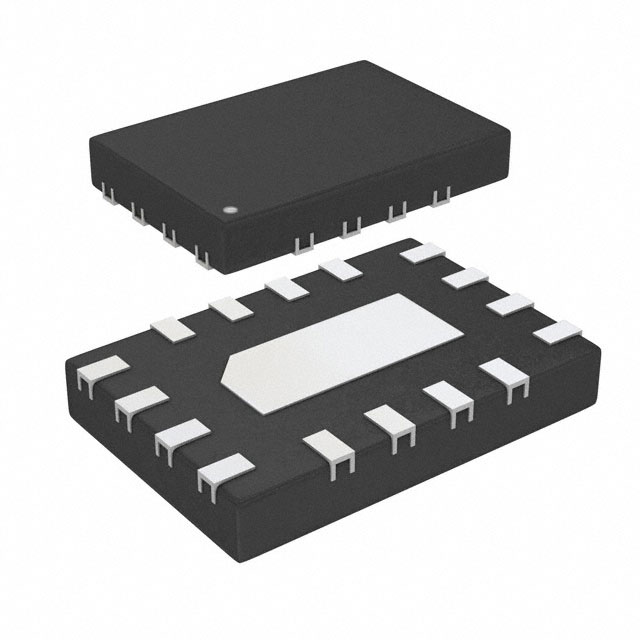

Image shown is a representation only
Manufacturer
Manufacturer No
STG3692QTR
Quantity
4
Availability
In Stock
Package
16-UFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC SWITCH SPDT X 4 5.2OHM 16QFN
Detailed Description
4 Circuit IC Switch 2:1 5.2Ohm 16-QFN (2.6x1.8)
DataSheet
Crosstalk
-78dB @ 1MHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
STMicroelectronics
Mounting Type
Surface Mount
-3db Bandwidth
800MHz
Package / Case
16-UFQFN Exposed Pad
Switch Circuit
SPDT
Charge Injection
5pC
Number of Circuits
4
Base Product Number
STG3692
Operating Temperature
-55°C ~ 125°C (TA)
Supplier Device Package
16-QFN (2.6x1.8)
On-State Resistance (Max)
5.2Ohm
Switch Time (Ton, Toff) (Max)
15ns, 13ns
Voltage - Supply, Single (V+)
1.65V ~ 4.3V
Current - Leakage (IS(off)) (Max)
20nA
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
300mOhm
Channel Capacitance (CS(off), CD(off))
5pF
| Attribute | Value |
|---|---|
| Crosstalk | -78dB @ 1MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | STMicroelectronics |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 800MHz |
| Package / Case | 16-UFQFN Exposed Pad |
| Switch Circuit | SPDT |
| Charge Injection | 5pC |
| Number of Circuits | 4 |
| Base Product Number | STG3692 |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Supplier Device Package | 16-QFN (2.6x1.8) |
| On-State Resistance (Max) | 5.2Ohm |
| Switch Time (Ton, Toff) (Max) | 15ns, 13ns |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
