Step1: Product

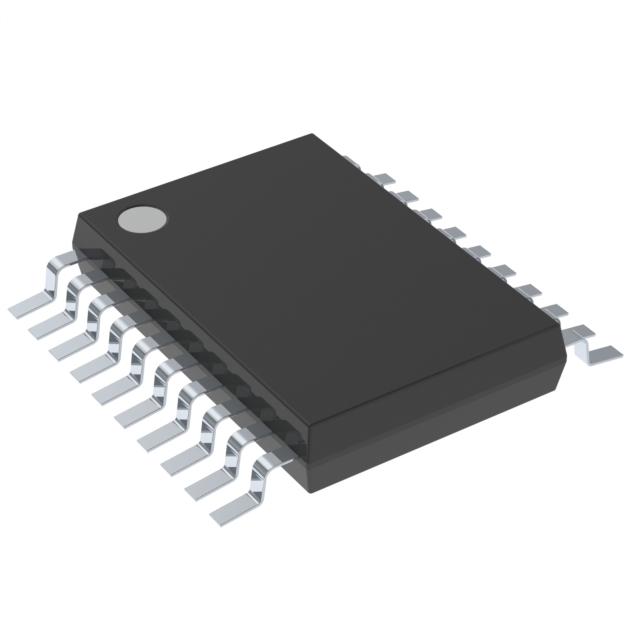

STMicroelectronics 74VHCT273ATTR
Image shown is a representation only
Manufacturer
Manufacturer No
74VHCT273ATTR
Package
20-TSSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR)
Description
IC FF D-TYPE SGL 8-BIT 20-TSSOP
Detailed Description
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-TSSOP (0.173", 4.40mm Width)
DataSheet
Type
D-Type
Series
74VHCT
Function
Master Reset
Packaging
Tape & Reel (TR)
Output Type
Non-Inverted
Part Status
Obsolete
Manufacturer
STMicroelectronics
Trigger Type
Positive Edge
Mounting Type
Surface Mount
Package / Case
20-TSSOP (0.173", 4.40mm Width)
Clock Frequency
160 MHz
Voltage - Supply
4.5V ~ 5.5V
Input Capacitance
6 pF
Number of Elements
1
Base Product Number
74VHCT273
Operating Temperature
-55°C ~ 125°C (TA)
Supplier Device Package
20-TSSOP
Current - Quiescent (Iq)
4 µA
Current - Output High, Low
8mA, 8mA
Number of Bits per Element
8
Max Propagation Delay @ V, Max CL
9.2ns @ 5V, 50pF
| Attribute | Value |
|---|---|
| Type | D-Type |
| Series | 74VHCT |
| Function | Master Reset |
| Packaging | Tape & Reel (TR) |
| Output Type | Non-Inverted |
| Part Status | Obsolete |
| Manufacturer | STMicroelectronics |
| Trigger Type | Positive Edge |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Clock Frequency | 160 MHz |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Capacitance | 6 pF |
| Number of Elements | 1 |
| Base Product Number | 74VHCT273 |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Supplier Device Package | 20-TSSOP |
| Current - Quiescent (Iq) | 4 µA |
| Current - Output High, Low | 8mA, 8mA |
| Number of Bits per Element | 8 |
| Max Propagation Delay @ V, Max CL | 9.2ns @ 5V, 50pF |
