Step1: Product
Standex-Meder Electronics CRF05-1A (250)

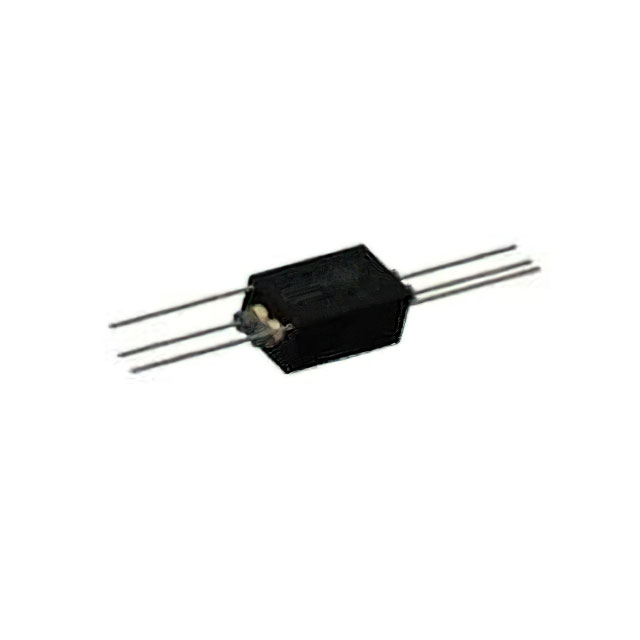

Image shown is a representation only
Manufacturer
Manufacturer No
CRF05-1A (250)
Packaging
Tape & Reel (TR)
Description
REED RELAY, 1 FORM A, SPST-NO, 5
Detailed Description
Reed Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
DataSheet
Series
CRF
Coil Type
Non Latching
Packaging
Tape & Reel (TR)
Part Status
Active
Seal Rating
Sealed - Fully
Coil Current
33.3 mA
Coil Voltage
5VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
Standex-Meder Electronics
Operate Time
600 µs
Release Time
50 µs
Mounting Type
Through Hole
Coil Resistance
150 Ohms
Contact Material
Rhodium (Rh)
Switching Voltage
170VAC, 170VDC - Max
Termination Style
SMD (SMT) Tab
Must Operate Voltage
3.75 VDC
Must Release Voltage
0.75 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
500 mA
| Attribute | Value |
|---|---|
| Series | CRF |
| Coil Type | Non Latching |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Seal Rating | Sealed - Fully |
| Coil Current | 33.3 mA |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | Standex-Meder Electronics |
| Operate Time | 600 µs |
| Release Time | 50 µs |
| Mounting Type | Through Hole |
| Coil Resistance | 150 Ohms |
| Contact Material | Rhodium (Rh) |
| Switching Voltage | 170VAC, 170VDC - Max |
| Termination Style | SMD (SMT) Tab |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.75 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 500 mA |
