Step1: Product

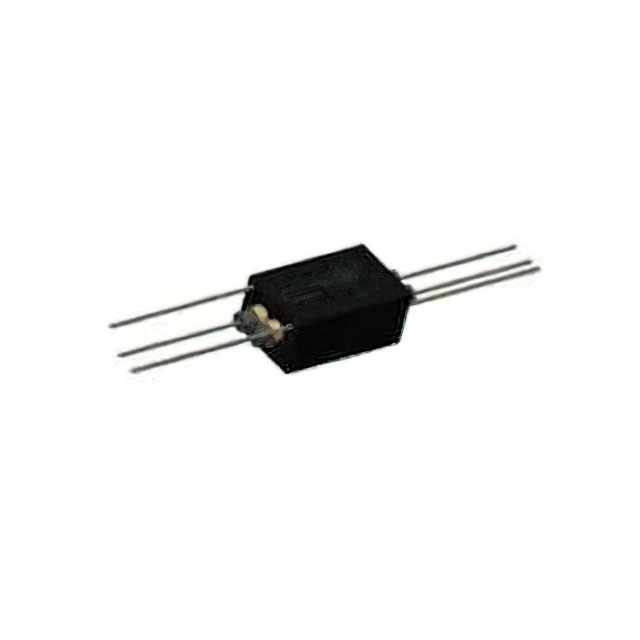

Standex-Meder Electronics BH24-1A85-M
Image shown is a representation only
Manufacturer
Manufacturer No
BH24-1A85-M
Packaging
Bulk
Description
HIGH VOLTAGE AND INSULATION REED
Detailed Description
Reed Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Series
BH
Coil Type
Non Latching
Packaging
Bulk
Coil Current
15 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
Standex-Meder Electronics
Operate Time
1.1 ms
Release Time
400 µs
Mounting Type
Through Hole
Coil Resistance
1.6 kOhms
Switching Voltage
1000VAC, 1000VDC - Max
Termination Style
PC Pin
Must Operate Voltage
17.6 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-20°C ~ 70°C
Contact Rating (Current)
1 A
| Attribute | Value |
|---|---|
| Series | BH |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Current | 15 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | Standex-Meder Electronics |
| Operate Time | 1.1 ms |
| Release Time | 400 µs |
| Mounting Type | Through Hole |
| Coil Resistance | 1.6 kOhms |
| Switching Voltage | 1000VAC, 1000VDC - Max |
| Termination Style | PC Pin |
| Must Operate Voltage | 17.6 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -20°C ~ 70°C |
| Contact Rating (Current) | 1 A |
