Step1: Product

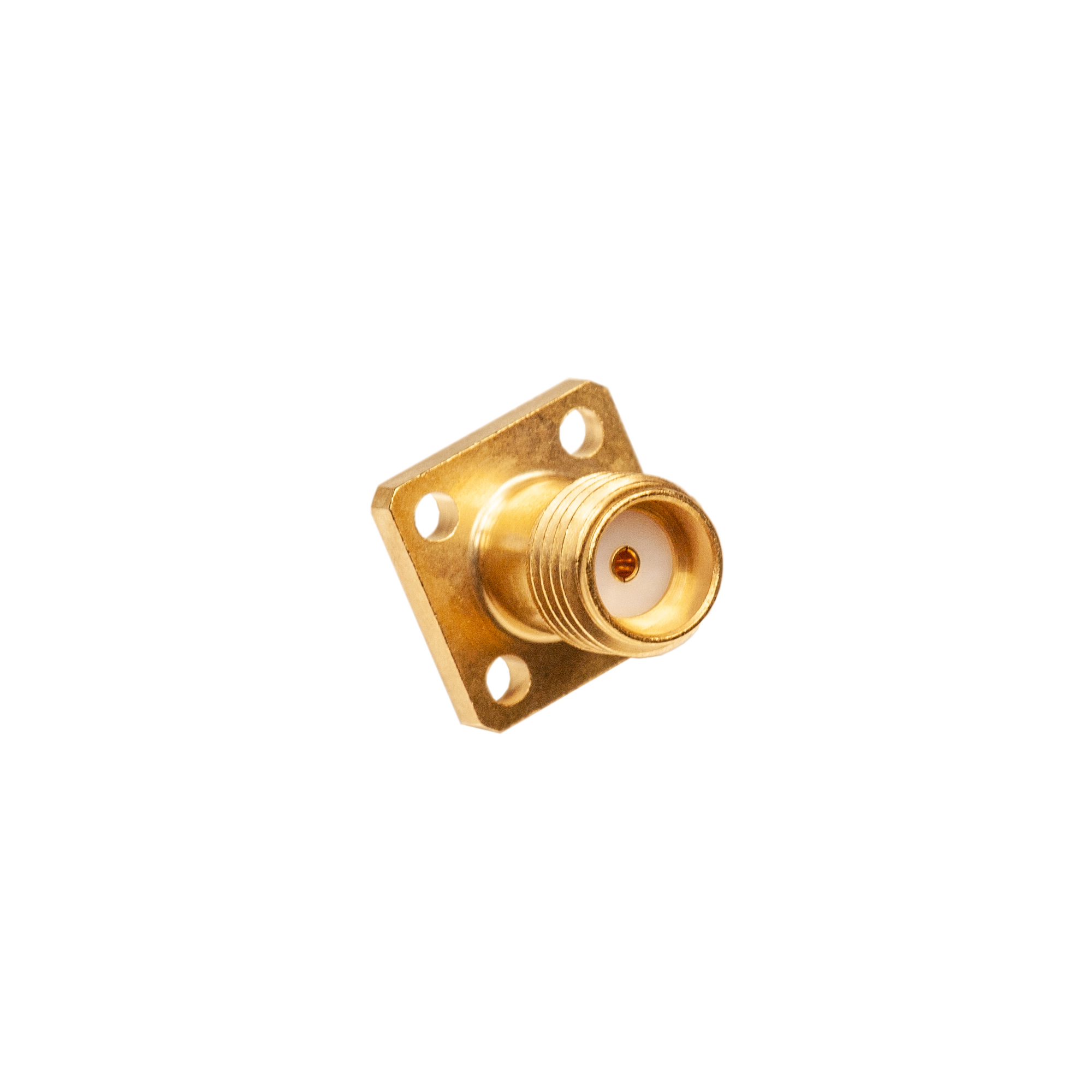

Signal Microwave FRF27-005NM-12
Image shown is a representation only
Manufacturer
Manufacturer No
FRF27-005NM-12
Packaging
Tray
Description
SMA (27GHz) Nonmagnetic Field Re
Detailed Description
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Compression
DataSheet
Mfr
Signal Microwave
Features
Field Replaceable, For Hermetically Sealed Pin
Impedance
50 Ohms
Packaging
Tray
Body Finish
Gold
Part Status
Active
Body Material
Phosphor Bronze
Housing Color
Gold
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Socket
Fastening Type
Threaded
Connector Style
SMA
Frequency - Max
27 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Screw
Contact Termination
Compression
Dielectric Material
Polyetherimide (PEI); Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 105°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Signal Microwave |
| Features | Field Replaceable, For Hermetically Sealed Pin |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Phosphor Bronze |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Threaded |
| Connector Style | SMA |
| Frequency - Max | 27 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Screw |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI); Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 105°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
