Step1: Product

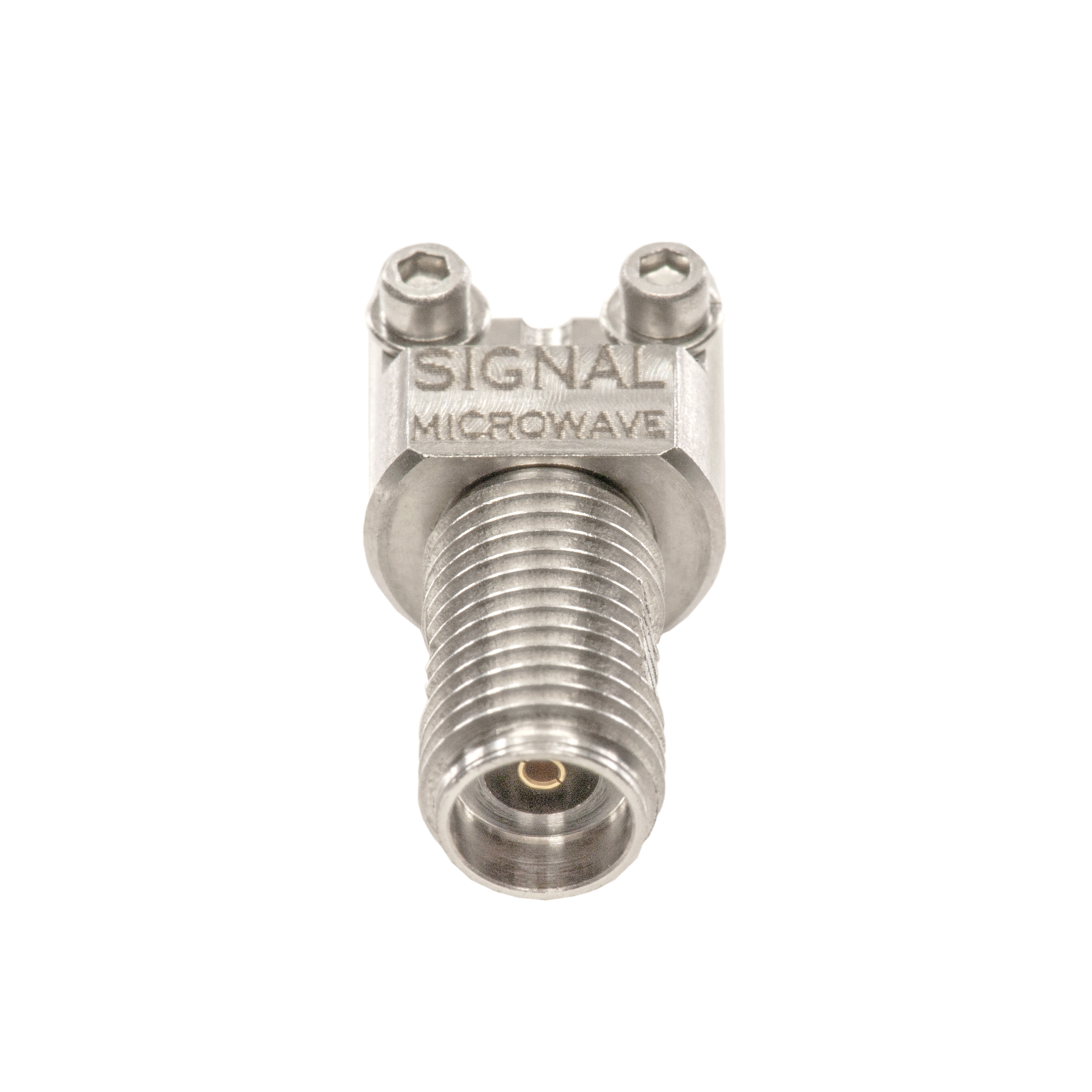

Signal Microwave ELFXL40-001
Image shown is a representation only
Manufacturer
Manufacturer No
ELFXL40-001
Packaging
Tray
Description
2.92 mm (40GHz) Extended Length
Detailed Description
2.92mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression
Datasheet
Mfr
Signal Microwave
Features
Mounting Hardware
Impedance
50 Ohms
Packaging
Tray
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Board Edge, End Launch
Connector Type
Receptacle, Female Socket
Fastening Type
Threaded
Connector Style
2.92mm
Frequency - Max
40 GHz
Number of Ports
1
Shield Termination
Screw
Contact Termination
Compression
Dielectric Material
Polychlorotrifluoroethylene (PCTFE); Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 105°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Signal Microwave |
| Features | Mounting Hardware |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Threaded |
| Connector Style | 2.92mm |
| Frequency - Max | 40 GHz |
| Number of Ports | 1 |
| Shield Termination | Screw |
| Contact Termination | Compression |
| Dielectric Material | Polychlorotrifluoroethylene (PCTFE); Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 105°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
