Step1: Product

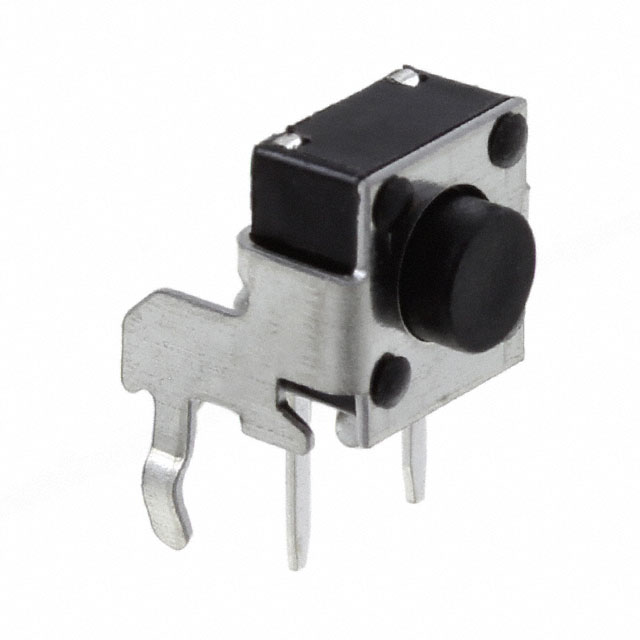

SCHURTER Inc. 1301.9501
Image shown is a representation only
Manufacturer
Manufacturer No
1301.9501
Quantity
20
Availability
In Stock
Packaging
Bulk
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
DataSheet
Mfr
SCHURTER Inc.
Series
LPV
Circuit
SPST-NO
Outline
7.50mm x 7.00mm
Features
Tactile Feedback
Packaging
Bulk
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Through Hole, Right Angle
Switch Travel
0.25mm
Mechanical Life
100,000 Cycles
Operating Force
160gf
Switch Function
Off-Mom
Termination Style
PC Pin
Ingress Protection
IP40
Actuator Orientation
Side Actuated
Operating Temperature
-20°C ~ 70°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Height off PCB, Vertical
3.85mm
| Attribute | Value |
|---|---|
| Mfr | SCHURTER Inc. |
| Series | LPV |
| Circuit | SPST-NO |
| Outline | 7.50mm x 7.00mm |
| Features | Tactile Feedback |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Switch Travel | 0.25mm |
| Mechanical Life | 100,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Ingress Protection | IP40 |
| Actuator Orientation | Side Actuated |
| Operating Temperature | -20°C ~ 70°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Height off PCB, Vertical | 3.85mm |
