Step1: Product

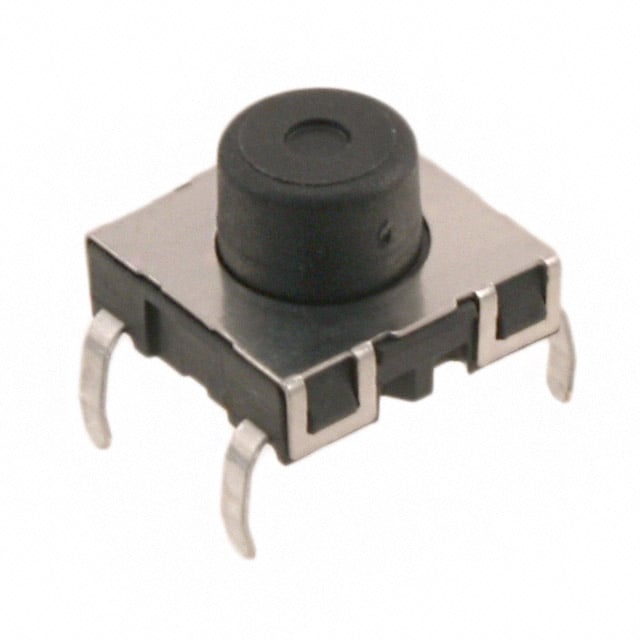

SCHURTER Inc. 1241.1614

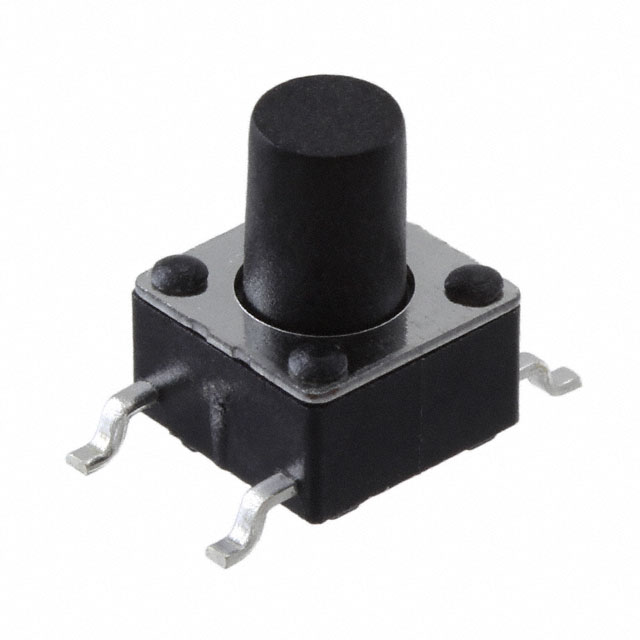

Image shown is a representation only
Manufacturer
Manufacturer No
1241.1614
Quantity
15
Availability
In Stock
Packaging
Bulk
Description
SWITCH TACTILE SPST-NO 0.05A 42V
Detailed Description
Tactile Switch SPST-NO Top Actuated Through Hole
DataSheet
Mfr
SCHURTER Inc.
Series
PMS
Circuit
SPST-NO
Outline
11.40mm x 11.40mm
Features
Tactile Feedback
Packaging
Bulk
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Through Hole
Switch Travel
0.35mm
Mechanical Life
1,000,000 Cycles
Operating Force
180gf
Switch Function
Off-Mom
Actuator Material
Polyphenylene Sulfide (PPS)
Termination Style
PC Pin
Ingress Protection
IP40
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 42VDC
Actuator Height off PCB, Vertical
7.60mm
| Attribute | Value |
|---|---|
| Mfr | SCHURTER Inc. |
| Series | PMS |
| Circuit | SPST-NO |
| Outline | 11.40mm x 11.40mm |
| Features | Tactile Feedback |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 0.35mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 180gf |
| Switch Function | Off-Mom |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Termination Style | PC Pin |
| Ingress Protection | IP40 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 42VDC |
| Actuator Height off PCB, Vertical | 7.60mm |
