Step1: Product
Sanken Electric USA Inc. SSD103

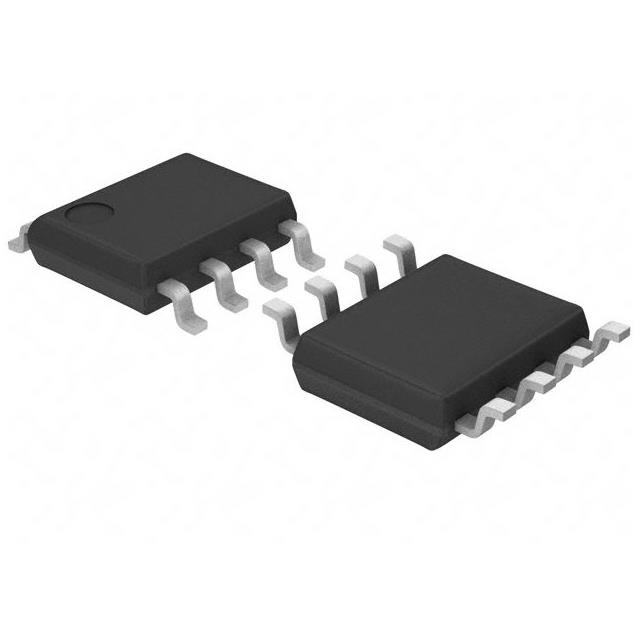

Image shown is a representation only
Manufacturer
Manufacturer No
SSD103
Package
8-SOIC (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR)
Description
TRANS NPN 70V 6A 8-SOP
Detailed Description
Bipolar (BJT) Transistor NPN 70 V 6 A 1.5 W Surface Mount 8-SOP
Datasheet
Mfr
Sanken Electric USA Inc.
Packaging
Tape & Reel (TR)
Power - Max
1.5 W
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.173", 4.40mm Width)
Transistor Type
NPN
Base Product Number
SSD1
Operating Temperature
150°C (TJ)
Supplier Device Package
8-SOP
Vce Saturation (Max) @ Ib, Ic
150mV @ 15mA, 1.5A
Current - Collector (Ic) (Max)
6 A
Current - Collector Cutoff (Max)
10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
400 @ 1A, 1V
Voltage - Collector Emitter Breakdown (Max)
70 V
| Attribute | Value |
|---|---|
| Mfr | Sanken Electric USA Inc. |
| Packaging | Tape & Reel (TR) |
| Power - Max | 1.5 W |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.173", 4.40mm Width) |
| Transistor Type | NPN |
| Base Product Number | SSD1 |
| Operating Temperature | 150°C (TJ) |
| Supplier Device Package | 8-SOP |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 15mA, 1.5A |
| Current - Collector (Ic) (Max) | 6 A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 400 @ 1A, 1V |
| Voltage - Collector Emitter Breakdown (Max) | 70 V |
