Step1: Product
Sanken Electric USA Inc. MN611S

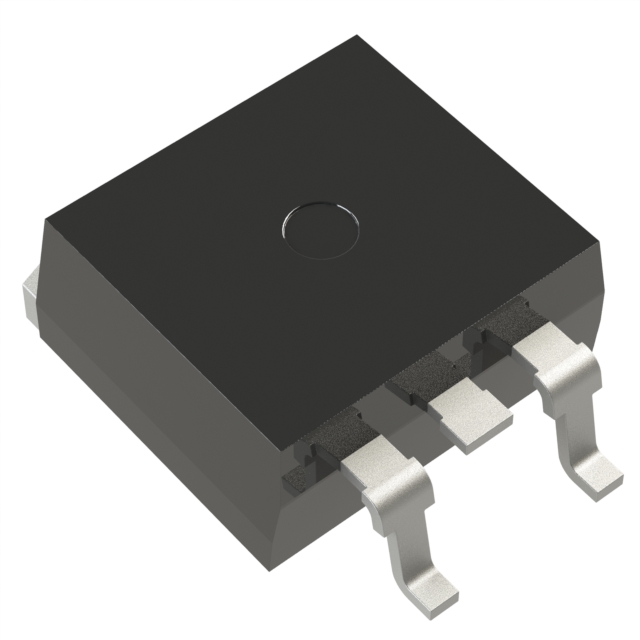

Image shown is a representation only
Manufacturer
Manufacturer No
MN611S
Package
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Packaging
Bulk
Description
TRANS NPN 115V 6A TO-220S
Detailed Description
Bipolar (BJT) Transistor NPN 115 V 6 A 1.2 W Surface Mount TO-220S
DataSheet
Mfr
Sanken Electric USA Inc.
Packaging
Bulk
Part Status
Obsolete
Power - Max
1.2 W
Mounting Type
Surface Mount
Package / Case
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Transistor Type
NPN
Operating Temperature
150°C (TJ)
Supplier Device Package
TO-220S
Vce Saturation (Max) @ Ib, Ic
120mV @ 12mA, 1.2A
Current - Collector (Ic) (Max)
6 A
Current - Collector Cutoff (Max)
10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
400 @ 1A, 1V
Voltage - Collector Emitter Breakdown (Max)
115 V
| Attribute | Value |
|---|---|
| Mfr | Sanken Electric USA Inc. |
| Packaging | Bulk |
| Part Status | Obsolete |
| Power - Max | 1.2 W |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Supplier Device Package | TO-220S |
| Vce Saturation (Max) @ Ib, Ic | 120mV @ 12mA, 1.2A |
| Current - Collector (Ic) (Max) | 6 A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 400 @ 1A, 1V |
| Voltage - Collector Emitter Breakdown (Max) | 115 V |
