Step1: Product

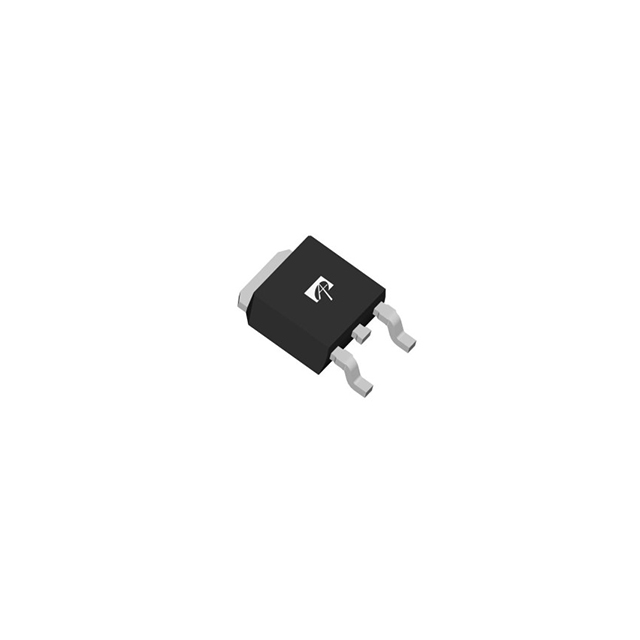

Sanken Electric USA Inc. AOD2146
Image shown is a representation only
Manufacturer
Manufacturer No
AOD2146
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Bulk
Description
40V N-CHANNEL ALPHASGT
Detailed Description
N-Channel 40 V 34.5A (Ta), 54A (Tc) 6.2W (Ta), 100W (Tc) Surface Mount TO-252
DataSheet
Mfr
Sanken Electric USA Inc.
Series
AlphaSGT™
FET Type
N-Channel
Packaging
Bulk
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Vgs(th) (Max) @ Id
2.5V @ 250µA
Base Product Number
AOD21
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
3.1mOhm @ 20A, 10V
Power Dissipation (Max)
6.2W (Ta), 100W (Tc)
Supplier Device Package
TO-252
Gate Charge (Qg) (Max) @ Vgs
70 nC @ 10 V
Drain to Source Voltage (Vdss)
40 V
Input Capacitance (Ciss) (Max) @ Vds
3830 pF @ 20 V
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Current - Continuous Drain (Id) @ 25°C
34.5A (Ta), 54A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Sanken Electric USA Inc. |
| Series | AlphaSGT™ |
| FET Type | N-Channel |
| Packaging | Bulk |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Base Product Number | AOD21 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3.1mOhm @ 20A, 10V |
| Power Dissipation (Max) | 6.2W (Ta), 100W (Tc) |
| Supplier Device Package | TO-252 |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 40 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3830 pF @ 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 34.5A (Ta), 54A (Tc) |
