Step1: Product
Sanken Electric USA Inc. 2SK4161D

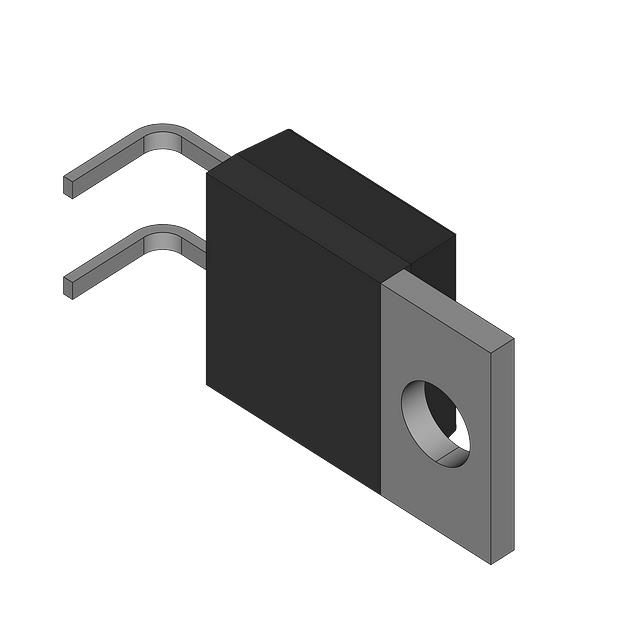

Image shown is a representation only
Manufacturer
Manufacturer No
2SK4161D
Package
TO-3P-3, SC-65-3
Packaging
Bulk
Description
MOS FET 60V/100A/0.0038
Detailed Description
N-Channel 60 V 100A (Tc) 132W (Tc) Through Hole TO-3P
DataSheet
Mfr
Sanken Electric USA Inc.
Grade
Automotive
FET Type
N-Channel
Packaging
Bulk
Vgs (Max)
±30V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Through Hole
Qualification
AEC-Q101
Package / Case
TO-3P-3, SC-65-3
Vgs(th) (Max) @ Id
4V @ 1mA
Base Product Number
2SK4161
Operating Temperature
175°C (TJ)
Rds On (Max) @ Id, Vgs
155mOhm @ 10A, 10V
Power Dissipation (Max)
132W (Tc)
Supplier Device Package
TO-3P
Gate Charge (Qg) (Max) @ Vgs
145 nC @ 10 V
Drain to Source Voltage (Vdss)
60 V
Input Capacitance (Ciss) (Max) @ Vds
10000 pF @ 10 V
Drive Voltage (Max Rds On, Min Rds On)
8V, 10V
Current - Continuous Drain (Id) @ 25°C
100A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Sanken Electric USA Inc. |
| Grade | Automotive |
| FET Type | N-Channel |
| Packaging | Bulk |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Qualification | AEC-Q101 |
| Package / Case | TO-3P-3, SC-65-3 |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Base Product Number | 2SK4161 |
| Operating Temperature | 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 155mOhm @ 10A, 10V |
| Power Dissipation (Max) | 132W (Tc) |
| Supplier Device Package | TO-3P |
| Gate Charge (Qg) (Max) @ Vgs | 145 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10000 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
