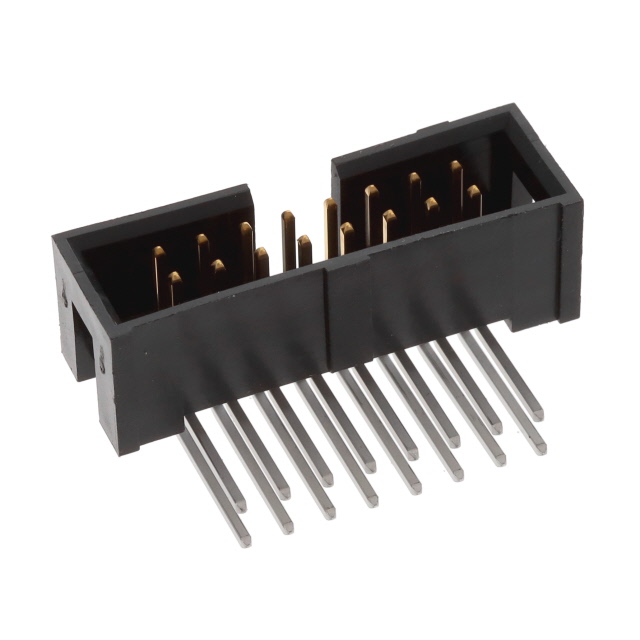

Samtec Inc. TST-108-05-S-D-RA
Image shown is a representation only
Manufacturer
Manufacturer No
TST-108-05-S-D-RA
Quantity
14
Availability
In Stock
Packaging
Tube
Description
CONN HEADER R/A 16POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
DataSheet
Mfr
Samtec Inc.
Style
Board to Cable/Wire
Series
Flex Stack, TST
Features
Keying Slot
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.365" (9.27mm)
Base Product Number
TST-108
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
16
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.230" (5.84mm)
Current Rating (Amps)
3.4A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.250" (6.35mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Cable/Wire |
| Series | Flex Stack, TST |
| Features | Keying Slot |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.365" (9.27mm) |
| Base Product Number | TST-108 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.230" (5.84mm) |
| Current Rating (Amps) | 3.4A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.250" (6.35mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
