Step1: Product

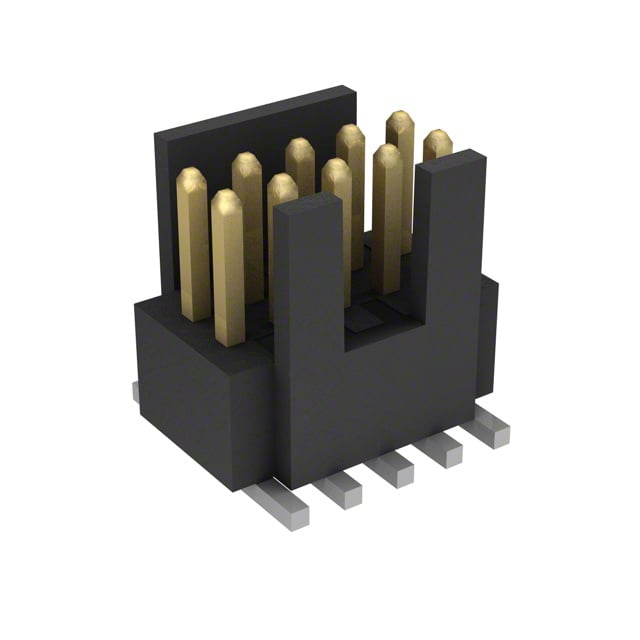

Samtec Inc. FTSH-105-01-F-DV-K
Image shown is a representation only
Manufacturer
Manufacturer No
FTSH-105-01-F-DV-K
Quantity
3123
Availability
In Stock
Packaging
Tube
Description
CONN HEADER SMD 10POS 1.27MM
Detailed Description
Connector Header Surface Mount 10 position 0.050" (1.27mm)
DataSheet
Mfr
Samtec Inc.
Style
Board to Board or Cable
Series
FTSH
Features
Keying Shroud
Packaging
Tube
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header, Cuttable
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.099" (2.51mm)
Base Product Number
FTSH-105
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
10
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Current Rating (Amps)
3.4A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.120" (3.05mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
3.00µin (0.076µm)
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Board or Cable |
| Series | FTSH |
| Features | Keying Shroud |
| Packaging | Tube |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header, Cuttable |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.099" (2.51mm) |
| Base Product Number | FTSH-105 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 3.4A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.120" (3.05mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
