Step1: Product
Samtec Inc. SFM-105-02-S-D-LC

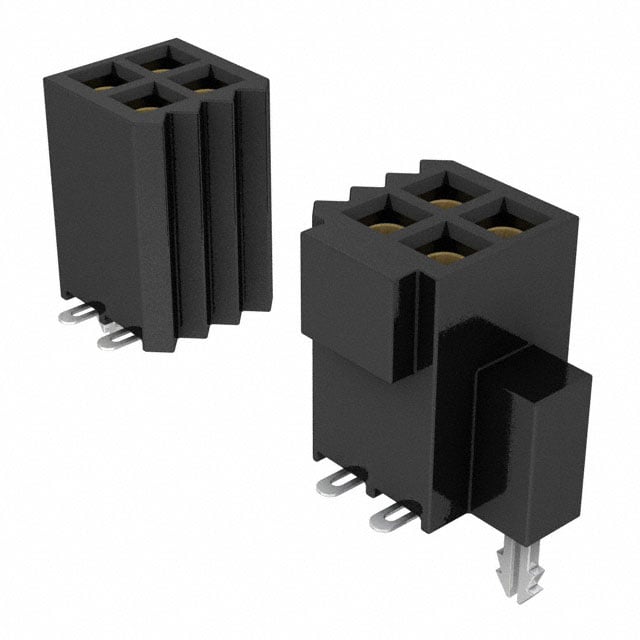

Image shown is a representation only
Manufacturer
Manufacturer No
SFM-105-02-S-D-LC
Quantity
50
Availability
In Stock
Packaging
Tube
Description
CONN RCPT 10POS 0.05 GOLD SMD
Detailed Description
10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
DataSheet
Mfr
Samtec Inc.
Style
Board to Board or Cable
Series
Tiger Eye™ SFM
Features
Board Lock
Packaging
Tube
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
250VAC
Contact Material
Beryllium Copper
Insulation Color
Black
Insulation Height
0.185" (4.70mm)
Base Product Number
SFM-105
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
10
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Current Rating (Amps)
3.2A per Contact
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Board or Cable |
| Series | Tiger Eye™ SFM |
| Features | Board Lock |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 250VAC |
| Contact Material | Beryllium Copper |
| Insulation Color | Black |
| Insulation Height | 0.185" (4.70mm) |
| Base Product Number | SFM-105 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 3.2A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
